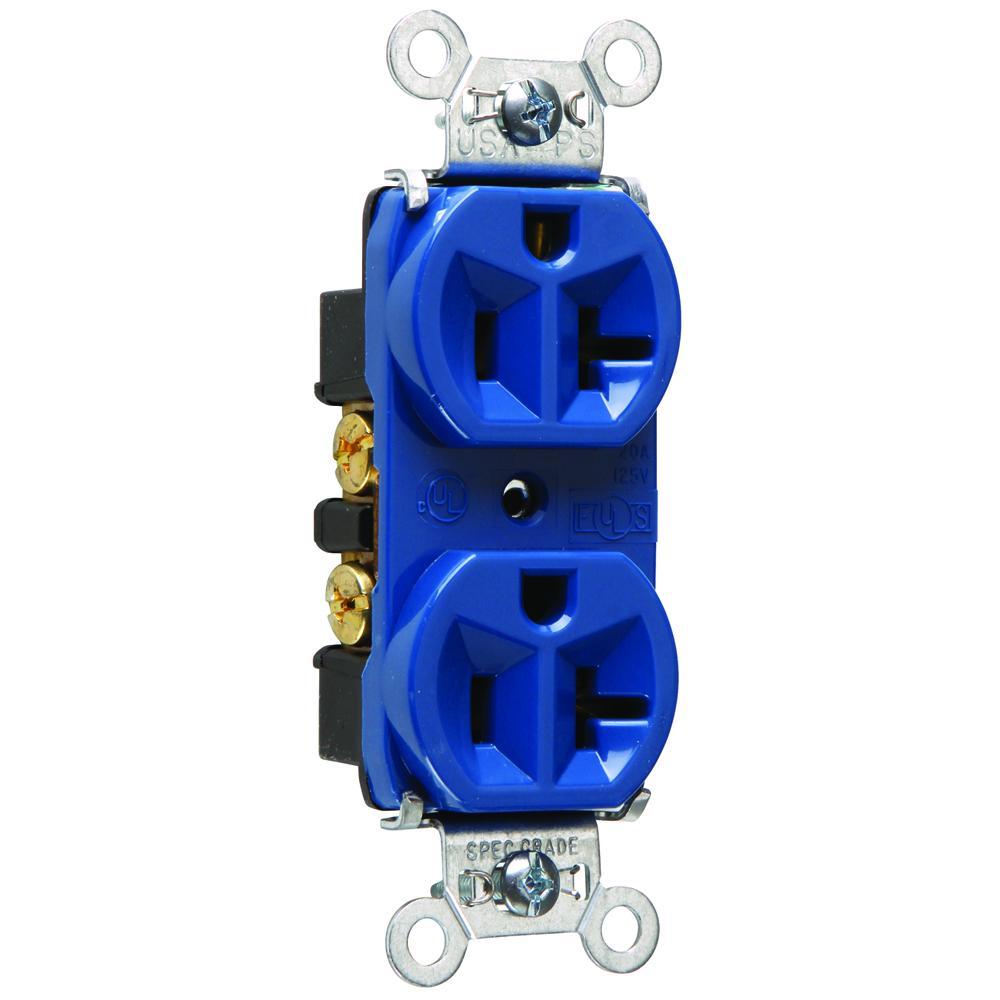

Pass & Seymour® 5362BL Duplex Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Blue
Sku #78500726574
MFG #5362BL
Attributes
| Type: | Duplex |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- Hard, Commercial Applications
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
