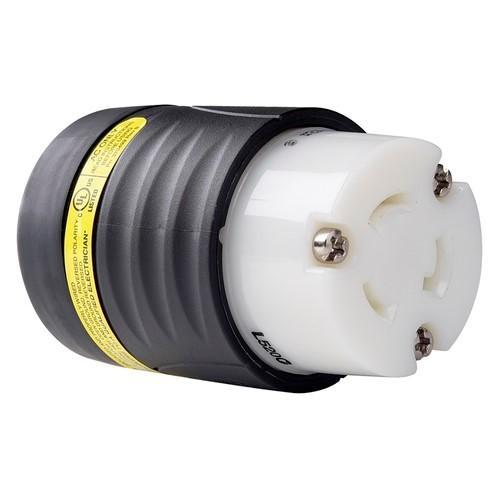

Pass & Seymour® Turnlok® L520-CGCM 3-Phase Locking Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Sku #78500726554
MFG #L520CGCM
Attributes
| Type: | 3-Phase |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Industrial Applications
- cULus Listed|UL Listed|Federal Specification WC596|UL94 V-2 Flammability Rating
- Continuous monitoring enhances personnel safety and adds convenience
- Dual, bright LED indicators with 360 deg visibility
- Red LEDs indicate ground continuity loss or reversed polarity
- For 250V configurations - Hot to ground cross will be indicated by a green and red LED
- NEMA configurations always visible for fast identification without disconnecting
- Exclusive neoprene dust shield on devices seals cable entry
- Optional weatherproof boots (sold separately)
- Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body
- Exclusive, rugged two-piece cord grip (15 Aonly) accepts a wide range of cord widths
- Provides uniform pressure for superior retention of conductors
- Recessed cord-grip screw reduces screwdriver slippage, improves safety
- Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire
- Color-coded terminal screws are backed-out for fast installation
