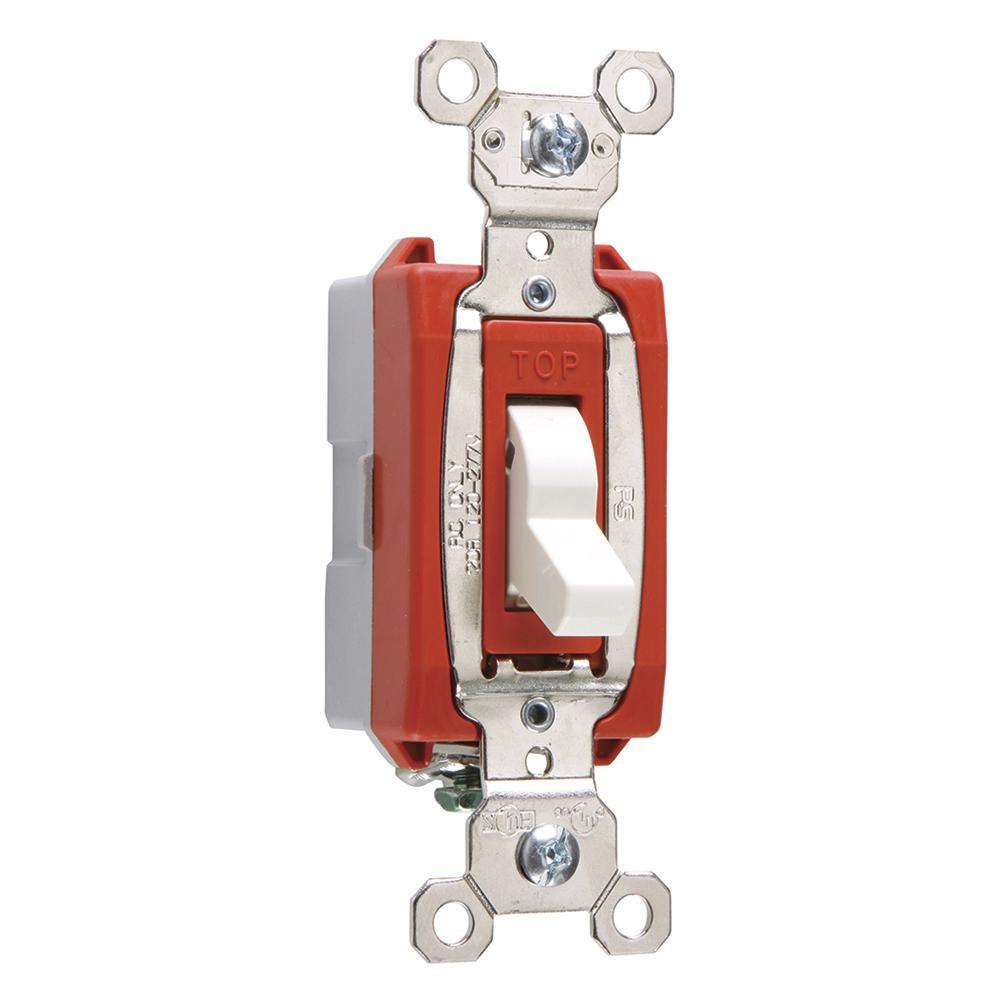

Pass & Seymour® PS20AC1WSL Extra Heavy Duty Toggle Switch, 120/277 V AC, 20 A, 1/2 hp, 2 hp, 1 W Power Rating
Sku #78500726040
MFG #PS20AC1WSL
Attributes
| Type: | Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Poles: | 1 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp, 2 hp, 1 W |
| Actuator: | Toggle |
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL94 V-2 Flammability Rated
- Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners
- One-piece nickel-plated brass strap for superior corrosion-resistance
- Auto-ground clip assures positive ground
- Cam control and spring actuator for positive "makes and breaks."
- Heavy-duty bumpers for quiet, smooth operation
- Locking support provides resistance to face and back body separation
- Oversized silver-alloy contacts for long life and better heat dissipation
- Side and external screw-pressure-plate back wire with 14 - 10 AWG copper or copper-clad wire
- Industrial Applications
