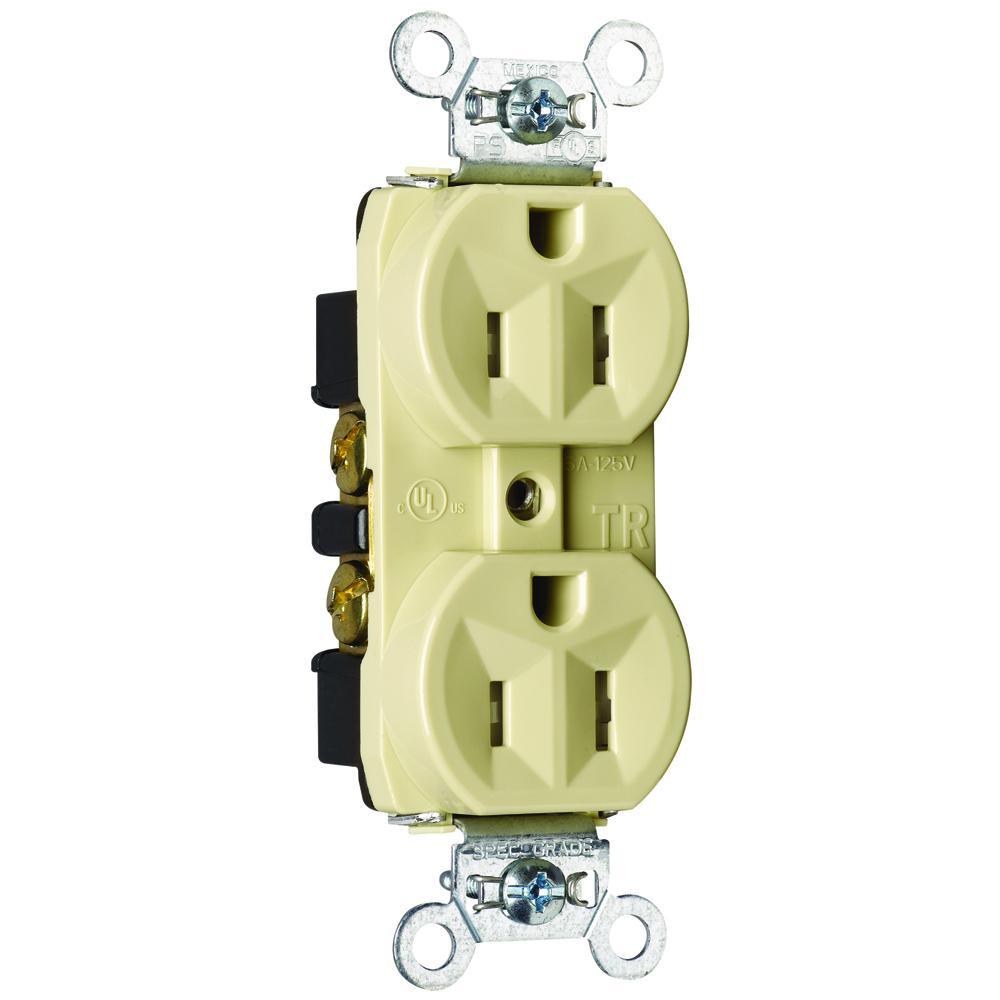

Pass & Seymour® TR5262I Duplex Tamper-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Sku #78500724374
MFG #TR5262I
Attributes
| Type: | Duplex Tamper-Resistant |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- Dual mechanical shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20A, 125V
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- https://www.youtube.com/watch?v=CjT4MIzB4sw
- CSA C22.2 No. 42|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated
- Healthcare, Education, Commercial and Institutional Applications
