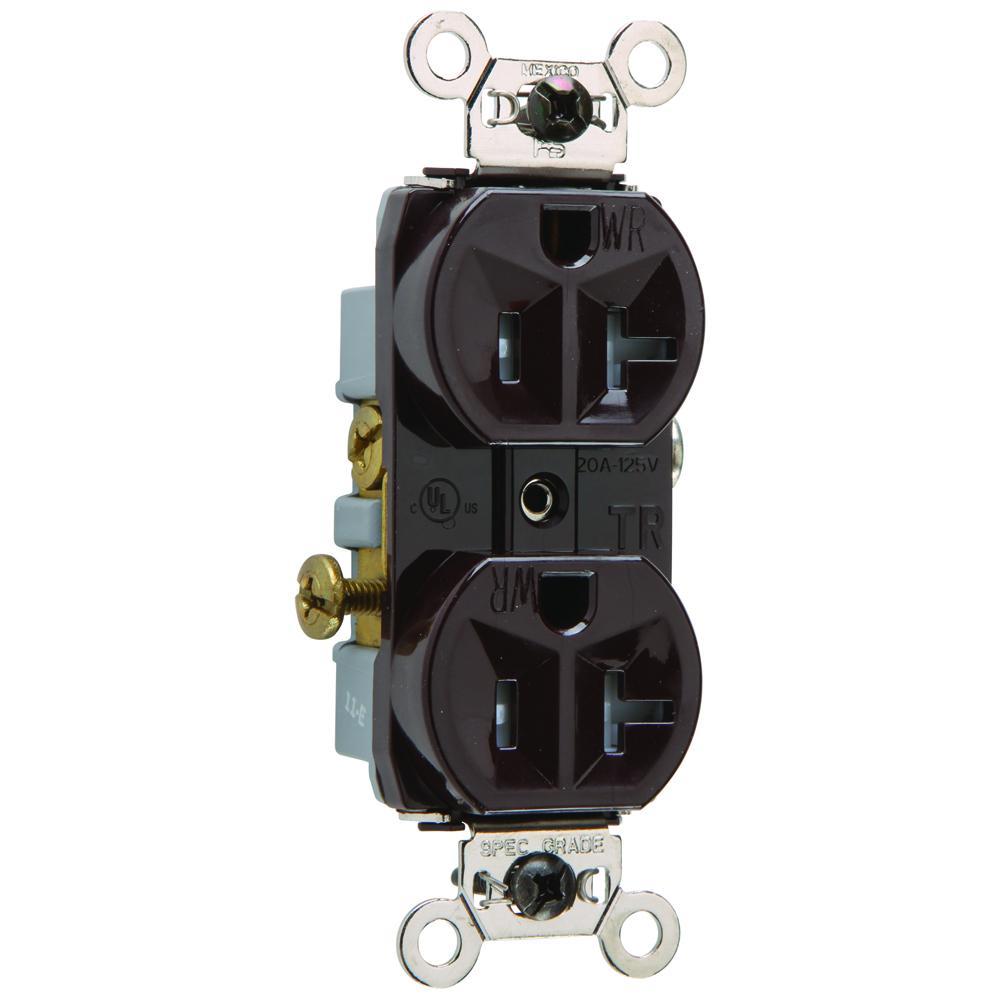

Pass & Seymour® WR20TR Duplex Tamper-Resistant UV-Resistant Weather-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Sku #78500724255
MFG #WR20TR
Attributes
| Type: | Duplex Tamper-Resistant UV-Resistant Weather-Resistant |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Commercial Applications
- Auto-ground clip assures positive ground
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Tri-drive brass terminal screws
- Internal screwpressure plate back and side wire capability
- Two back wire holes for more wiring flexibility
- Heavy-duty, brass strap for added strength and ground conductivity
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- .032 in thick brass triple-wipe power contacts for lasting retention
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +50C, minimum -40C without impact
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability Rated
