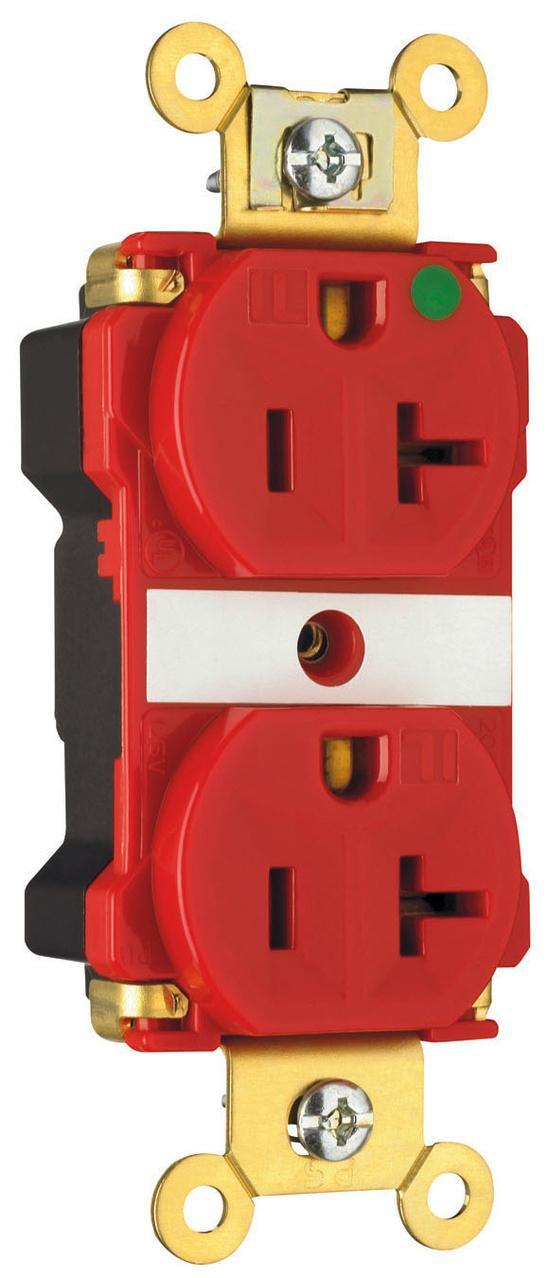

Pass & Seymour® PlugTail® PT8300ILRED Duplex Extra Heavy Duty LED Illuminated Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Sku #78500723857
MFG #PT8300ILRED
Attributes
| Type: | Duplex Extra Heavy Duty LED Illuminated |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Molded-in ''IL'' markings on face of product
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Crimped and welded contacts
- Large brass contacts snugly terminate on device blade terminals
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- http://www.youtube.com/watch?v=_SjD8max4i200
- Healthcare, Education, Commercial and Institutional Applications
- ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated|UL Listed
