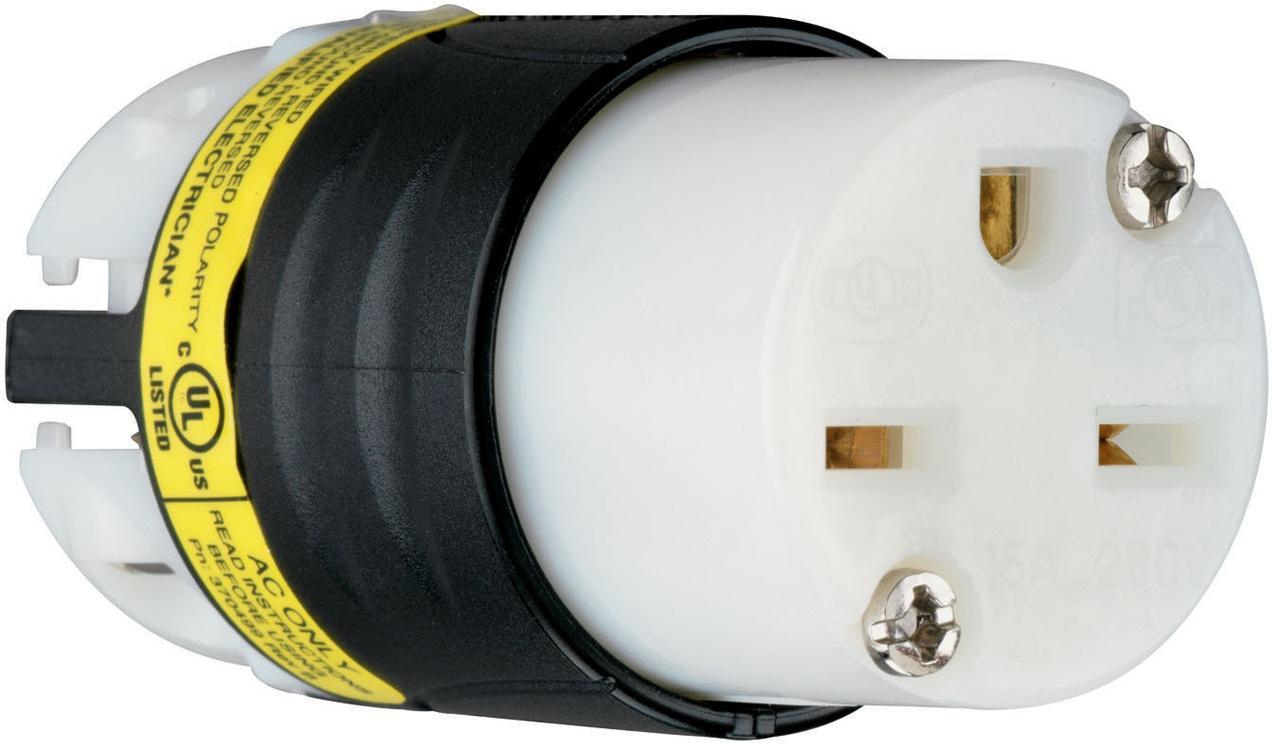

Pass & Seymour® PS5669-XGCM Angled Straight Blade Connector, 250 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Sku #78500723727
MFG #PS5669XGCM
Attributes
| Type: | Angled |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-15R |
- Continuous monitoring enhances personnel safety and adds convenience
- Dual, bright LED indicators with 360 deg visibility
- Red LEDs indicate ground continuity loss or reversed polarity
- For 250V configurations - Hot to ground cross will be indicated by a green and red LED
- Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body
- Exclusive two-piece cord grip accepts a wide range of cord widths
- Provides more consistent pressure for superior conductor retention
- Internal dust shield keeps terminals free of contaminants
- Recessed cord-grip screw reduces screwdriver slippage, improves safety
- Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire
- Color-coded terminal screws are positioned on the same plane and backed-out for fast installation
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- CSA C22.2 No. 42|cULus Listed|Federal Specification WC596|UL 498|UL File No. E146159
- Industrial, Health Care, Education, Institutional, Retail, Office and Hospitality/Lodging Applications
