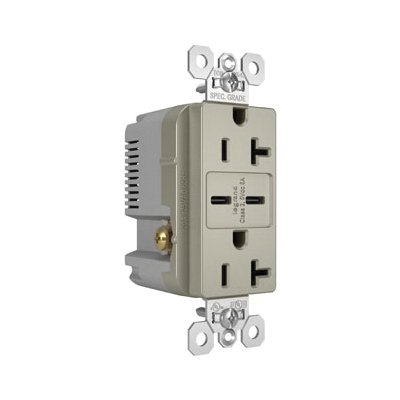

Pass & Seymour® TR20USBCC6NI Ultra-Fast USB Charging Receptacle With Duplex Tamper-Resistant Receptacle, 20 A, 125 V AC, Nickel
Sku #78500721568
MFG #TR20USBCC6NI
Attributes
| Type: | Ultra-Fast |
| Wire Size: | 14 to 10 AWG |
| USB Quantity: | 2 |
| Electrical Ratings: | 20 A, 125 V AC |
| USB Type: | Type-C |
| USB Rating: | 6 A |
- Smart chip technology to maximize charge speeds at each USB port
- Reversible type C USB connector to accommodate latest mobile devices
- Back and side wire terminals accommodate 14 to 10 AWG stranded and solid copper wire for installation flexibility
- 12 to 14 in-lb tightening torque
- Scalloped cover design and posted side wire terminal screws allow for faster and easier installs
- Score lines on device ears for easy removal prior to drywall routing
- The external brass back wire pressure plates allow for added productivity at installation, especially with 12 AWG wire
- Healthcare, Education, Airports, Retail, Hospitality/Lodging, Office, Institutional and Multiple Dwelling Applications
- NEC Certified|CSA C22.2 No. 223|CSA C22.2 No. 42|cULus Listed|Federal Specifications W-C-596|UL File No. E140596|UL 498|UL 1310|UL 94 V-2 Flammability Rating|ECCN: EAR99
