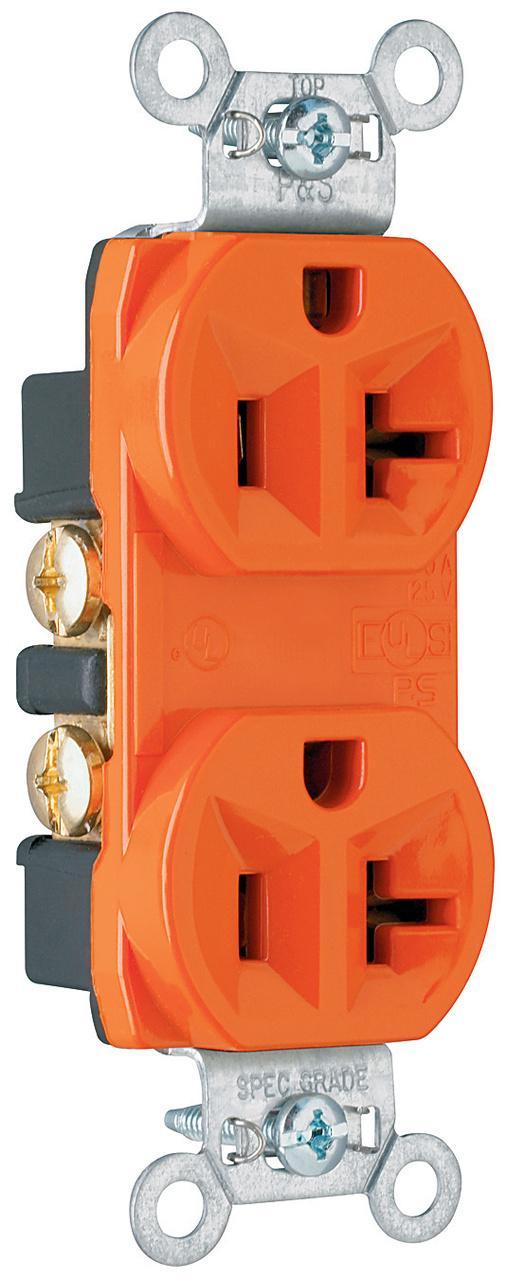

Pass & Seymour® 5362OR Duplex Receptacle, 125 V, 20 A, 2 Poles, Orange
Sku #78500719776
MFG #5362OR
Attributes
| Type: | Duplex |
| Amperage Rating: | 20 A |
| Grade: | Commercial/Specification |
| Voltage Rating: | 125 V |
| Number of Poles: | 2 |
| Temperature Rating: | -40 to 60 deg C |
- cULus Listed
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
Pass & Seymour®Pass & Seymour® 5362OR Duplex Receptacle, 125 V, 20 A, 2 Poles, Orange
SKU #78500719776
MFG #5362OR
