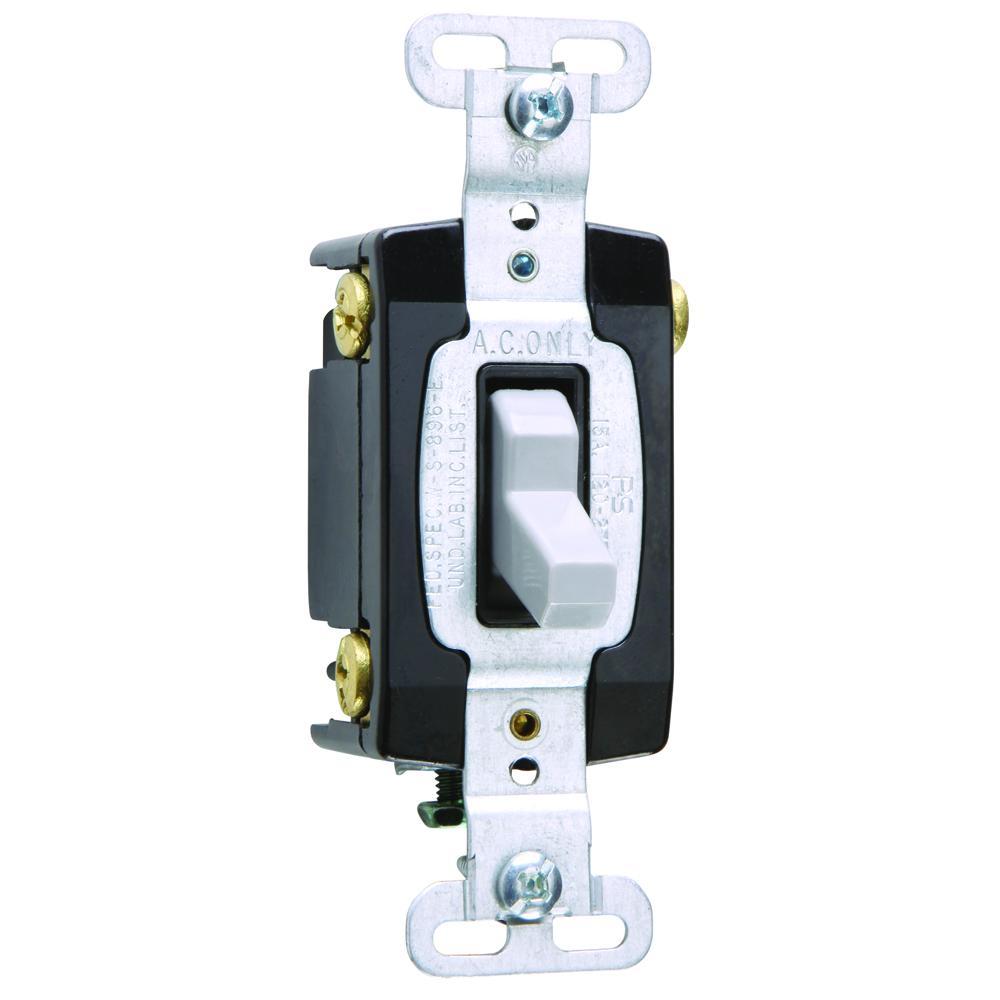

Pass & Seymour® PS15AC4GRY 4-Way Heavy Duty Toggle Switch, 120/277 V AC, 15 A, 1/2 hp, 2 hp, 4 W Power Rating
Sku #78500719672
MFG #PS15AC4GRY
Attributes
| Type: | 4-Way Heavy Duty |
| Amperage Rating: | 15 A |
| Actuator: | Cam/Spring/Toggle |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp, 2 hp, 4 W |
| Mounting: | Wall |
- External screw-pressure-plate back and side wired
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of istallation
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL94 V-2 Flammability Rated
- For industrial uses such as health care, education and institutional applications
