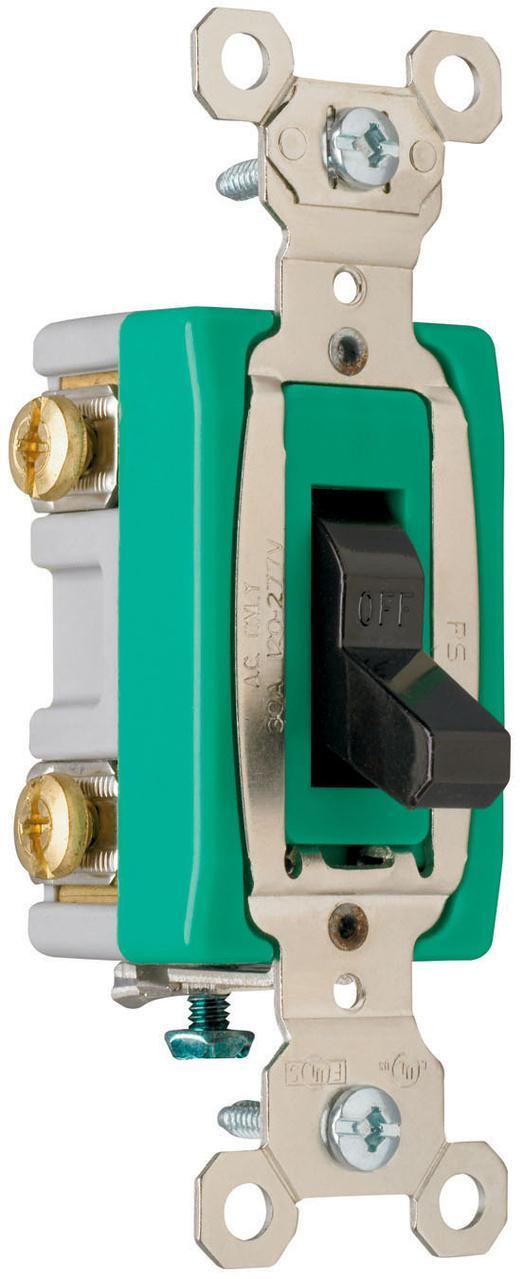

Pass & Seymour® PS30AC2-HP Heavy Duty Manual Controller Switch, 120/277 V AC, 30 A, 2 W
Sku #78500719597
MFG #PS30AC2HP
Attributes
| Type: | Heavy Duty |
| Amperage Rating: | 30 A |
| Contact Rating: | 30 A at 120/277 V AC |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 2 W |
| Number of Poles: | 2 |
- Industrial Applications
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|UL 20|UL File No. E140597|UL94 V-2 Flammability Rating|Made in USA
- Compact design provides ease of installation
- Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life
- Box lug terminals
- Wire pockets and thick wall arc barriers
- Cold-rolled steel NEMA 3R enclosure with polyester urethane finish
- Type 3R enclosure has 2-1/2 in, 3/4 in, and 1 in concentric knockouts on bottom
- Accepts 4 AWGFor compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
