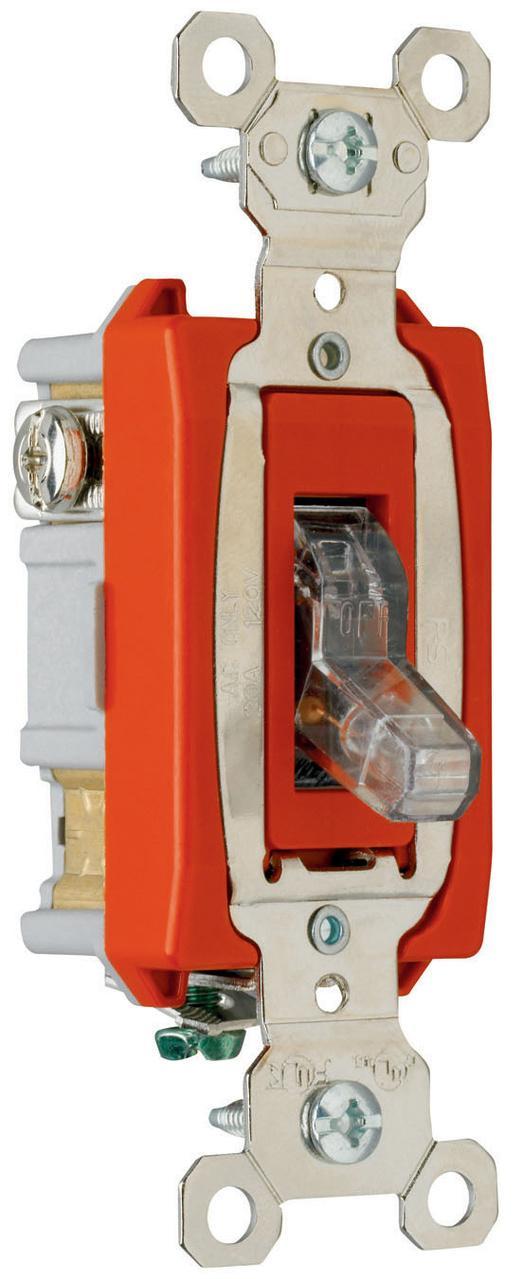

Pass & Seymour® PS20AC1CPL Heavy Duty Specification Grade Pilot Light Switch, 120/277 V AC, 20 A, 1/2 hp Power Rating
Sku #78500719583
MFG #PS20AC1CPL
Attributes
| Type: | Heavy Duty Specification Grade |
| Amperage Rating: | 20 A |
| Number of Poles: | 1 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp |
| Actuator: | Cam/Spring/Toggle |
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Commercial/Residential, Industrial, Health Care, Education and Institutional Applications
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL 20
