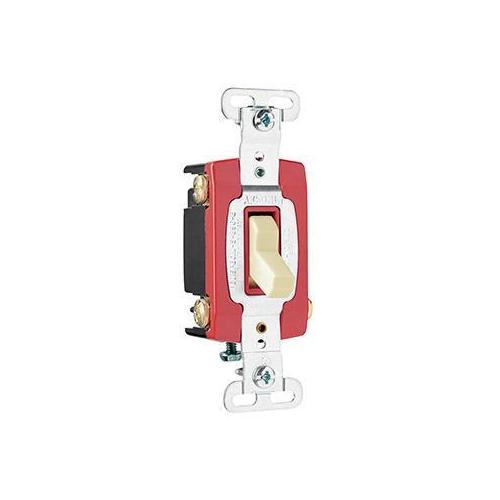

Pass & Seymour® PS20AC4I 4-Way Heavy Duty Toggle Switch, 120/277 V AC, 20 A, 1/2 hp Power Rating
Sku #78500719548
MFG #PS20AC4I
Attributes
| Type: | 4-Way Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Poles: | 4 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp |
| Actuator: | Cam |
- External screw-pressure-plate back and side wired
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of istallation
- For industrial uses such as health care, education and institutional
- CSA C22.2 No. 111 Certified|cULus File No. LR17446 Listed|Federal Specification WS896|NEMA WD-1, WD-6|RoHS compliant|UL20 File No. E140597 Listed
