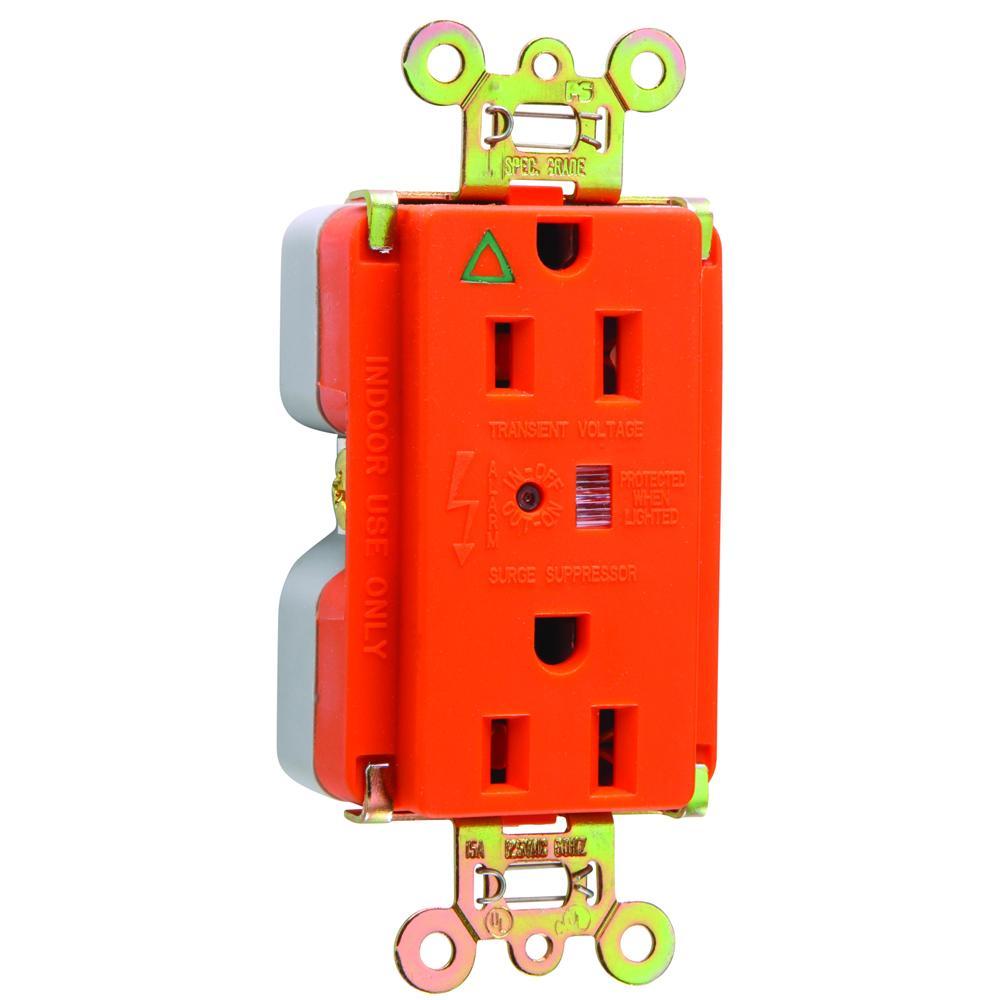

Pass & Seymour® IG5262OSP Duplex Isolated Ground Surge Protective TVSS Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Orange
Sku #78500719482
MFG #IG5262OSP
Attributes
| Type: | Duplex Isolated Ground Surge Protective TVSS |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- Solid-state LED monitor has 25-year minimum life expectancy
- A high visibility, wide-angle lens indicates protection is in place
- LED Indication - Steady green indicates protected, Flashing re indicates not protected, OFF indicates no power to unit
- Audible alarm alert of MOV damage
- Alarm able to be turned On/Off
- Wrap-around steel strap for structural integrity
- Auto-ground is standard, for easier installation
- Triple-wipe, copper-alloy contacts for superior, more dependable connection
- External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept 14 - 10 AWG copper or copper-clad, solid or stranded conductors
- 3 17mm dual pack MOVs absorb up to 340 Jof excess energy in each leg (L-N, L-G, N-G) with 24,000 Acurrent handling capability for full, equal and symmetrical protection
- Protection response time in less than one nanosecond
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- http://www.youtube.com/watch?v=CjT4MIzB4sw
- Commercial Applications
- ANSI/IEEE C62.41|ANSI/IEEE C62.45|CSA C22.2 No. 42|cUL Listed|ECCN: EAR99|UL 498|UL 1449|UL 92 V-2 Flammability Rated|UL 94 V-2 Flammability Rated
