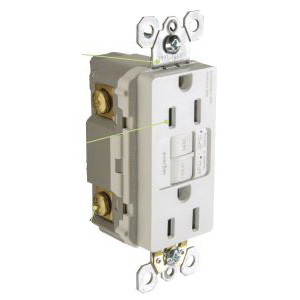

Pass & Seymour® AFGF202DFW radiant® Duplex Dead Front End Dual Function Grounding Tamper-Resistant AFCI/GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Sku #78500715833
MFG #AFGF202DFW
Attributes
| Type: | Duplex Dead Front End Dual Function Grounding Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1-1/2 hp |
| Series: | radiant® |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Protects against fire caused by arc-fault and ground fault occurrences
- Unlike breaker alternatives, AFCI/GFCI outlets make it easier to fix trips with a convenient reset button on the outlet
- Test and rest buttons located on face of device at point of use, making it easier to fix trips directly on the device
- SafeLock Protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Conducts an industry-leading automatic self-test every 3 seconds
- If the device ever fails, the indicator light flashes to signal it should be replaced
- Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration
- Note - Will cut power to face and downstream outlets if wired incorrectly
- Auto-ground clip assures a positive ground to a metal box
- Dead front rated as 1 1/2 HP motor control switch
- Easier installation than breakers, fits any wall box, no need to match brand of breaker box
- https://www.youtube.com/watch?v=CjpgAk7vct0
- NEC Certified|Federal Specifications WC596|cULus Listed|UL 498|UL 1699A|UL 943|CSA C22.2 No. 42|NEMA WD-1|NEMA WD-6|ECCN: EAR99
