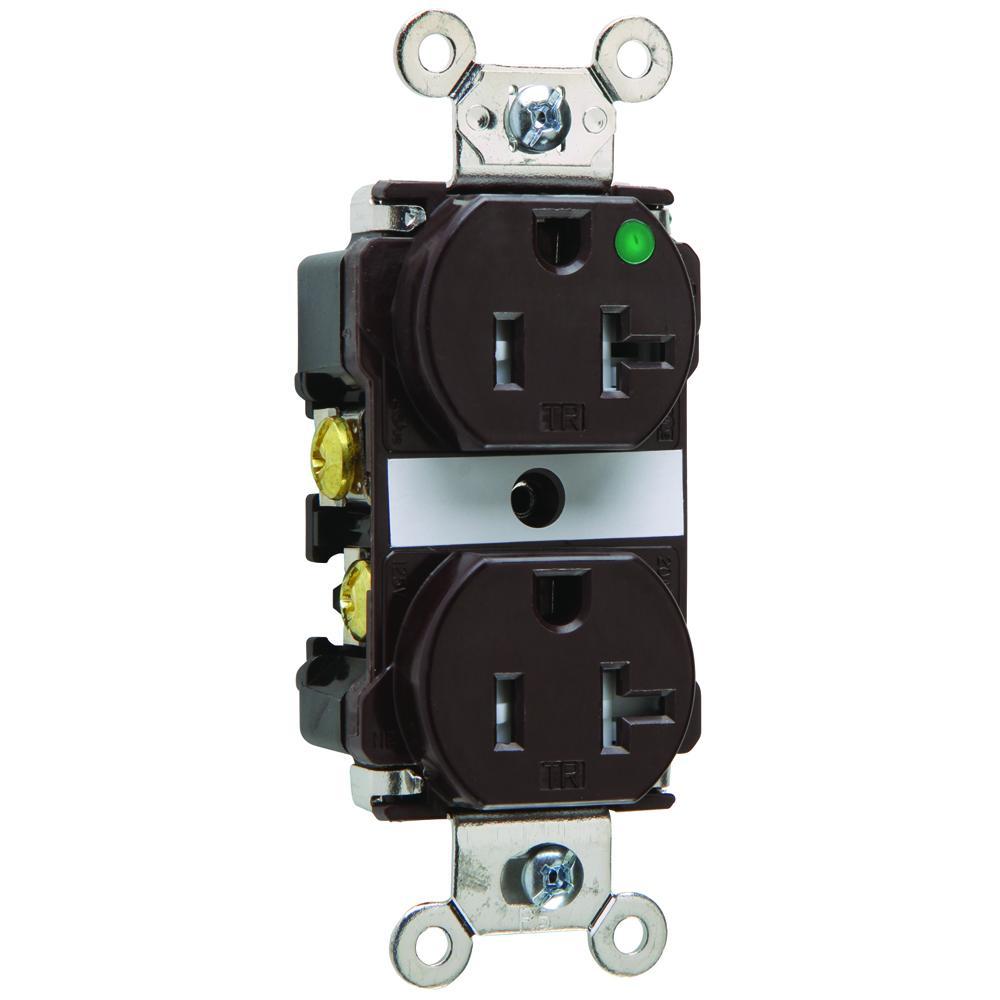

Pass & Seymour® TR63H Duplex Smooth Face Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Sku #78500714524
MFG #TR63H
Attributes
| Type: | Duplex Smooth Face Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Healthcare, Education, Commercial and Institutional Applications
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20 A 125V
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, nickel-plated - brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- https://www.youtube.com/watch?v=CjT4MIzB4sw
- CSA C22.2 No. 42 File No. LR16063|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated
