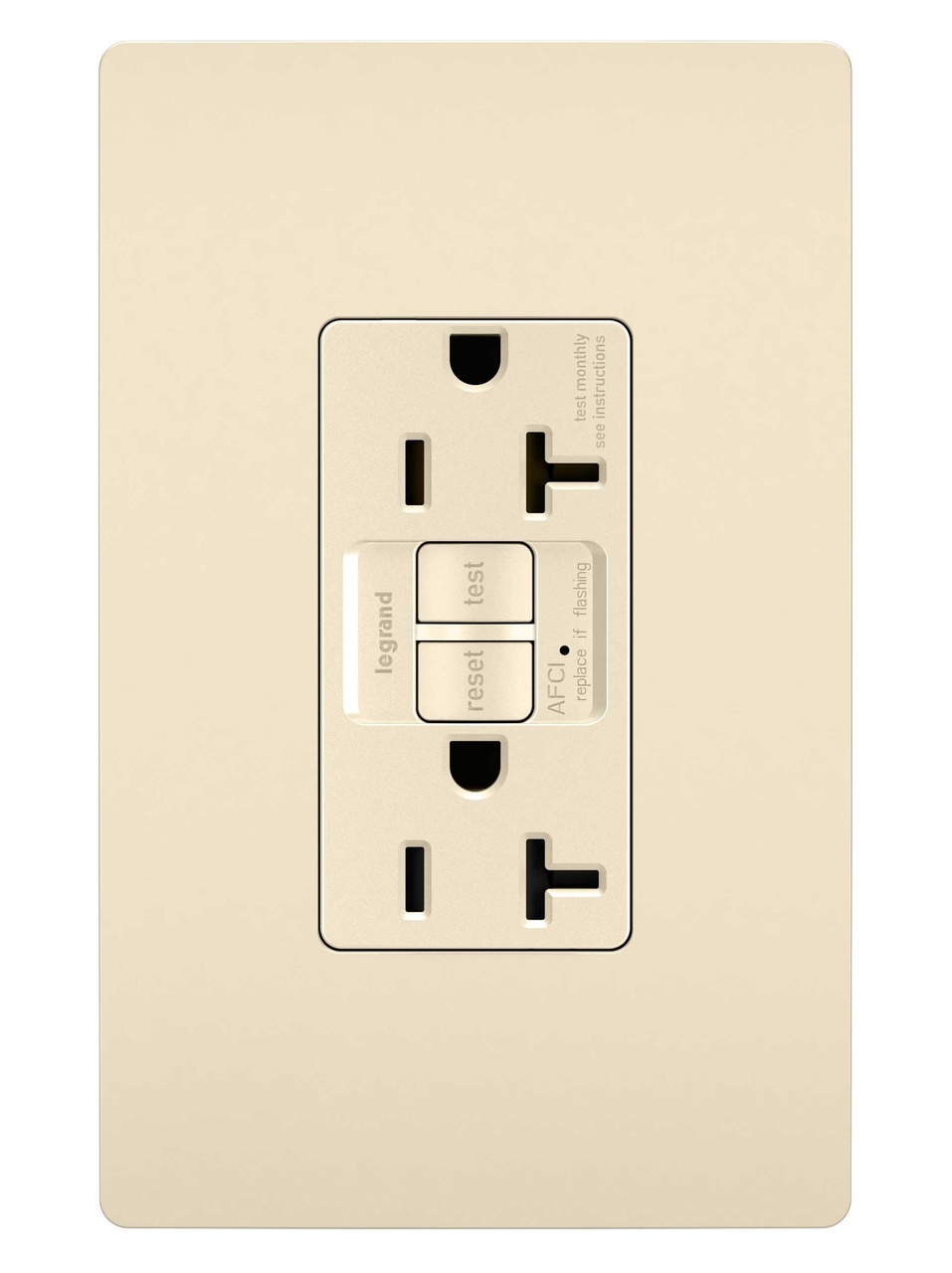

Pass & Seymour® Radiant® AF202TRLA Duplex Grounding Tamper-Resistant AFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Sku #78500712789
MFG #AF202TRLA
Attributes
| Type: | Duplex Grounding Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- Protects against fire caused by arc-fault occurrences
- Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect
- Test and rest buttons located on face of device at point of use, making it easier to fix trips directly on the device
- SafeLock Protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration
- Note - Will cut power to face and downstream outlets if wired incorrectly
- Auto-ground clip assures a positive ground to a metal box
- Easier installation than breakers, fits any wall box, no need to match brand of breaker box
- https://www.youtube.com/watch?v=CjpgAk7vct0
- Commercial and Residential Applications
- CSA C22.2 No. 42|cULus 1699A File No. E363109|ECCN: EAR99|Federal Specification W-C-596|UL 498
