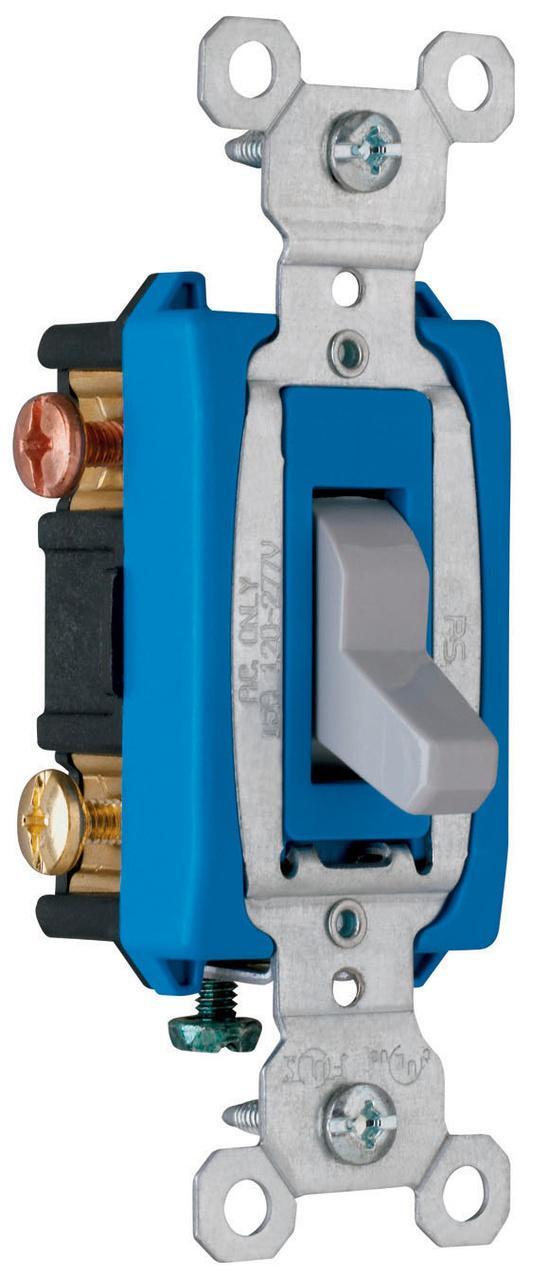

Pass & Seymour® CS15AC3GRY 3-Way Heavy Duty Toggle Switch, 120/277 V AC, 15 A, 1/2 hp, 2 hp, 1 W Power Rating
Sku #78500712658
MFG #CS15AC3GRY
Attributes
| Type: | 3-Way Heavy Duty |
| Amperage Rating: | 15 A |
| Actuator: | Cam/Toggle |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp, 2 hp, 1 W |
| Mounting: | Wall |
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10 AWG copper or copper-clad wire
- Oversized silver alloy contacts for longer dependable switch life
- http://www.youtube.com/watch?v=LX4RBw7p4YE
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 20|UL 94 V-2 Flammability Rating
- Commercial, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
