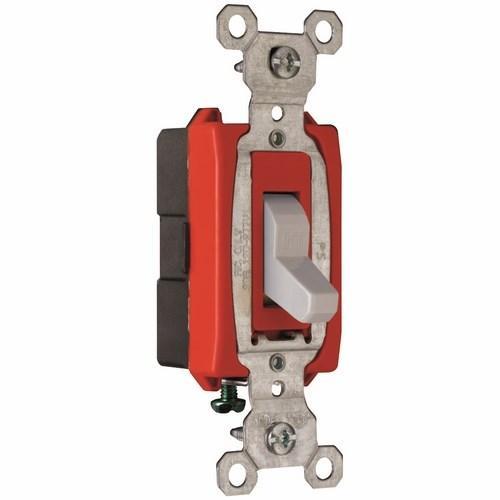

Pass & Seymour® CS20AC1GRY Heavy Duty Toggle Switch, 120/277 V AC, 20 A, 1/2 hp Power Rating
Sku #78500712657
MFG #CS20AC1GRY
Attributes
| Type: | Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Poles: | 1 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp |
| Actuator: | Toggle |
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10 AWG copper or copper-clad wire
- Oversized silver alloy contacts for longer dependable switch life
- http://www.youtube.com/watch?v=LX4RBw7p4YE
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 498/20|UL 94 V-2 Flammability Rated
- Commercial, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
