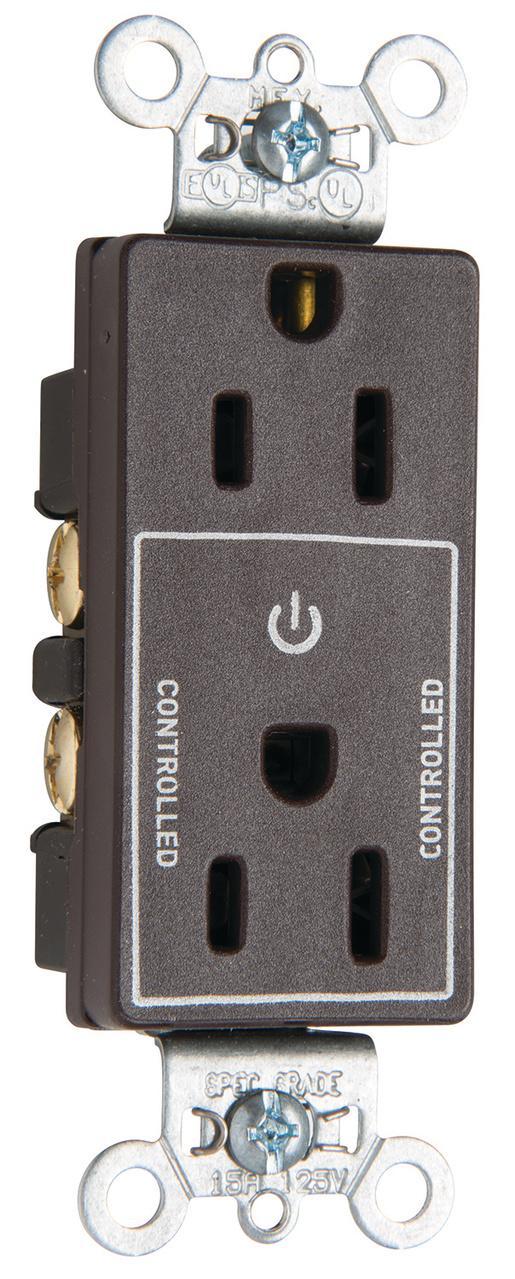

Pass & Seymour® TR26262CH Decorator Plug Load Half Controllable Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, Brown
Sku #78500705129
MFG #TR26262CH
Attributes
| Type: | Decorator Plug Load Half Controllable Heavy Duty Tamper Resistant |
| Amperage Rating: | 15 A |
| Grade: | Specification |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | 5-15R |
| Temperature Rating: | -40 to 60 deg C |
- Permanent controlled receptacle markings using abrasion resistant ink
- Can be wired to any number ofstand-alone or system-based plug load control solutions
- CH Version Only - Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
- Tri-drive brass-plated terminal screws
- Two back-wire holes for more wiring flexibility
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly
- Auto-ground eliminates the necessity to terminate grounding conductor in device
- Dual mechanical shutter system to help prevent insertion of foreign objects (in Tamper-Resistant models)
- cULus Listed|Federal Specification Specified|UL 498
