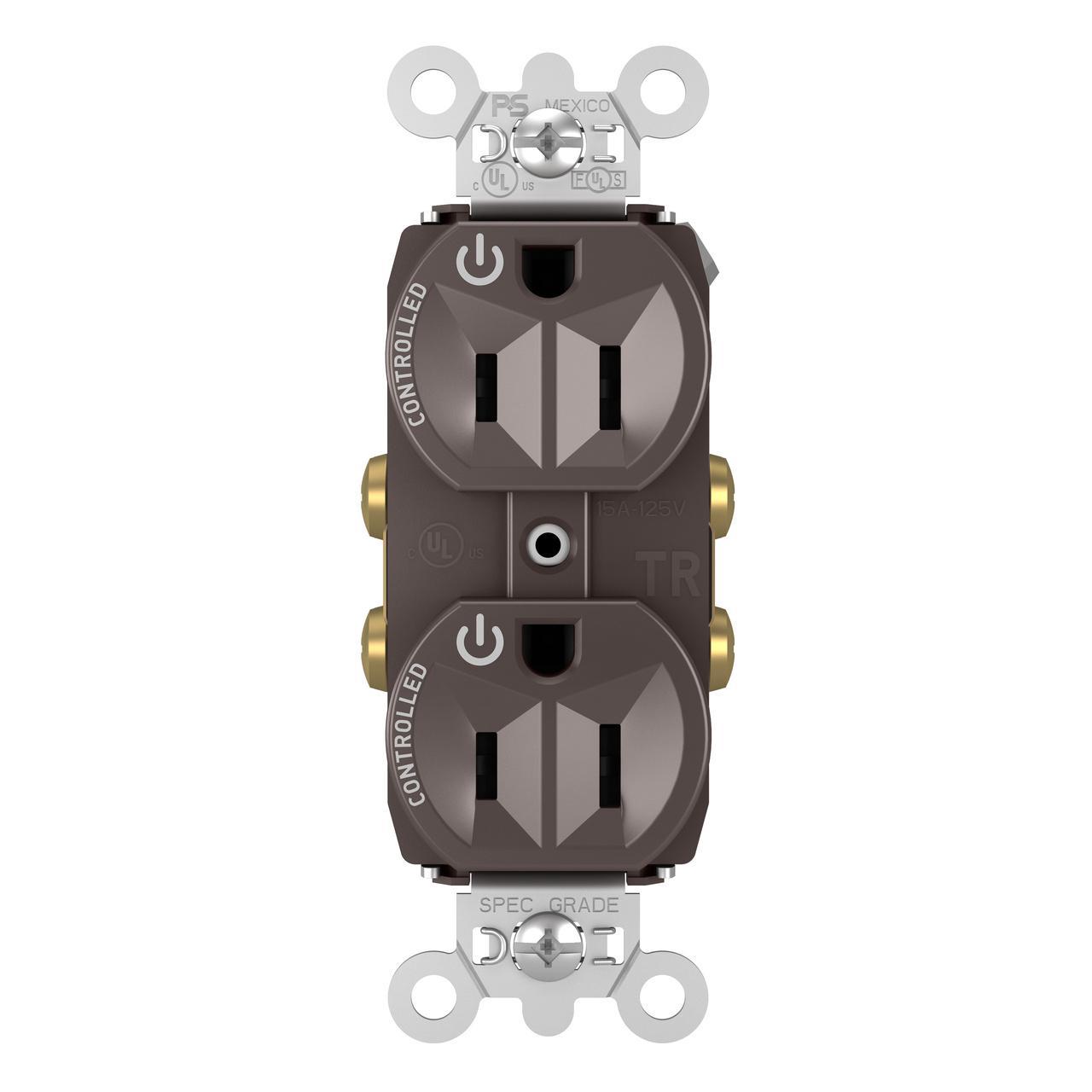

Pass & Seymour® TR5262CD Duplex Dual Controlled Plug Load Controllable Straight Blade Receptacle, 125 V AC, 15 A, Brown
Sku #78500705124
MFG #TR5262CD
Attributes
| Type: | Duplex Dual Controlled Plug Load Controllable |
| Amperage Rating: | 15 A |
| Grade: | Commercial/Specification |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | 5-15R |
| Temperature Rating: | -40 to 60 deg C |
- CSA C22.2 No. 42|File No. LR16063|Federal Specification Specified|UL 498|File No. E140596
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Permanent controlled receptacle markings using abrasion resistant ink
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Tri-drive brass-plated terminal screws
- Two back-wire holes for more wiring flexibility
- Dual mechanical shutter system to help prevent insertion of foreign objects (for Tamper-Resistant models)
- CH Version Only - Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
