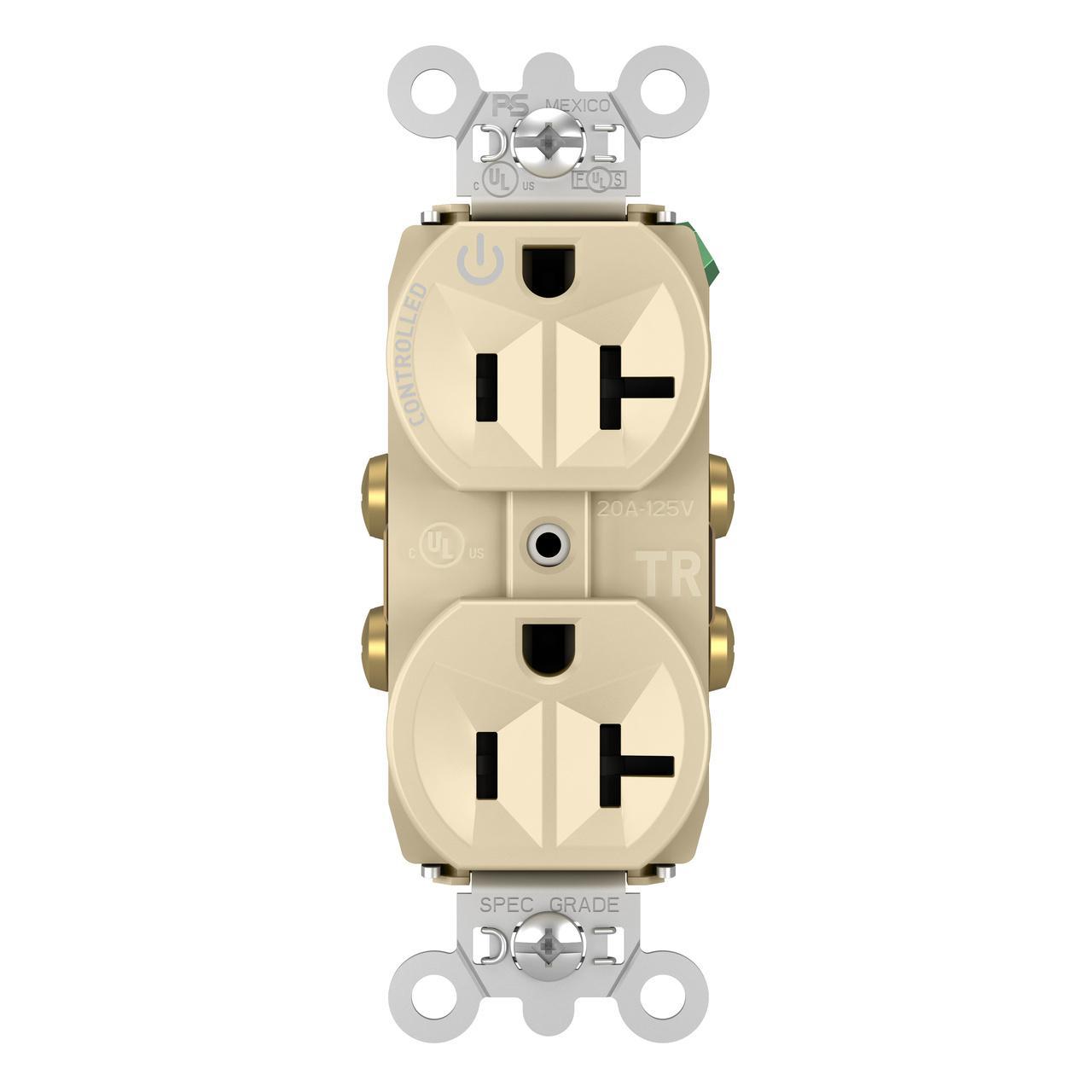

Pass & Seymour® TR5362CHI Duplex Half Controlled Plug Load Controllable Straight Blade Receptacle, 125 V AC, 20 A, Ivory
Sku #78500705115
MFG #TR5362CHI
Attributes
| Type: | Duplex Half Controlled Plug Load Controllable |
| Amperage Rating: | 20 A |
| Grade: | Commercial/Specification |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | 5-20R |
| Temperature Rating: | -40 to 60 deg C |
- Can be wired to any number of system-based or stand-alone plug load control solutions
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Permanent controlled receptacle markings using abrasion resistant ink
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Tri-drive brass-plated terminal screws
- Two back-wire holes for more wiring flexibility
- Strap tabs wrap around face to prevent strap from separating from face and back body
- CH Version Only - Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
- CSA C22.2 No. 42|File No. LR16063|Federal Specification Specified|UL 498|File No. E140596
