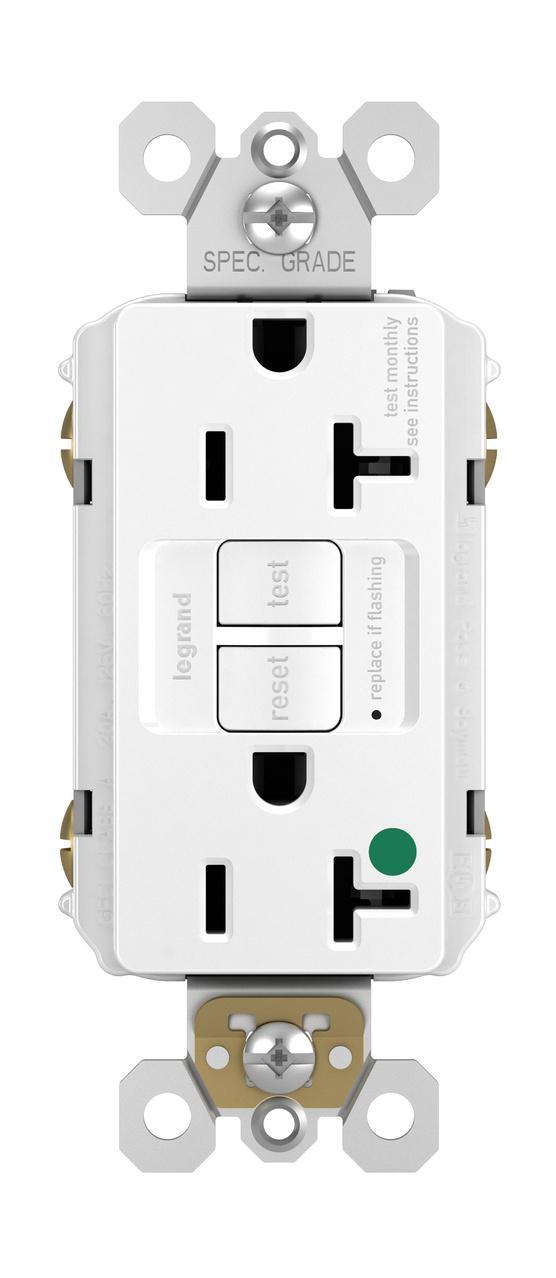

Pass & Seymour® 2097HGNAW radiant® Duplex Self-Test GFCI Receptacle, 125 V AC, 20 A, 2 Poles, White
Sku #78500704987
MFG #2097HGNAW
Attributes
| Type: | Duplex Self-Test |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Series: | radiant® |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling Applications
- Protects children patented shutter system helps prevent improper insertion of foreign objects
- Thinner than competitors' GFCI Receptacles, leaves more room for wires in the box
- Auto ground clip assures a positive ground to metal box
- Prevents line load reversal miswire no power to the face or downstream receptacles if wired incorrectly
- Trip indicator light (red LED)
- Ground screw has back wire clamp for easy installation
- Mounting screws are shipped captive in the device and wall plate for easier installation
- Extra long strap
- Button colors match the device face
- Dual direction test and reset buttons
- 5 +/- 1 m trip threshold
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- ECCN EAR99|cULus File No. E42190|UL498|UL943|Federal Specification WC596|CSA C22.2 No. 42/144|NEMA WD1/WD6|NAFTA Compliant
