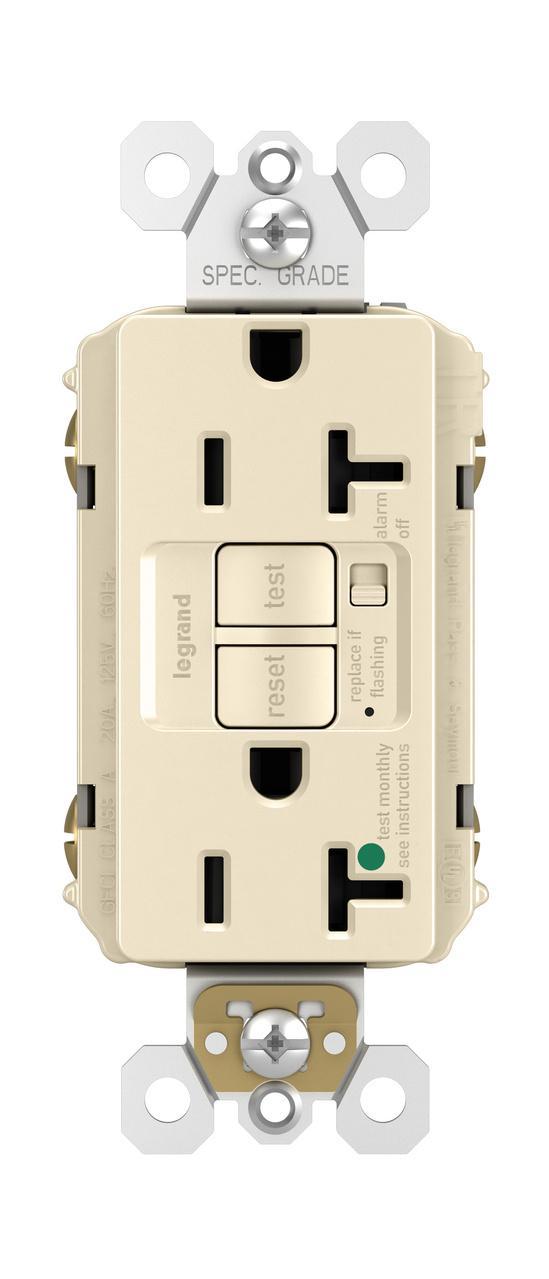

Pass & Seymour® 2097HGTRALA radiant® Audible Alarm Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 20 A, 2 Poles, Light Almond
Sku #78500704902
MFG #2097HGTRALA
Attributes
| Type: | Audible Alarm Duplex Self-Test Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1-1/2 hp |
| Series: | radiant® |
| Amperage Rating: | 20 A |
| Frequency Rating: | 60 Hz |
- Audible alarm alerts of tripped condition, alarm can be turned ON/OFF
- Alarm rated at 60 dB at 10 ft
- Protects children patented shutter system helps prevent improper insertion of foreign objects meeting National electrical Code® tamper resistant requirements
- Thinner than competitors' GFCI receptacles, leaves more room for wires in the box
- Auto ground clip assures a positive ground to metal box
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- Trip indicator light (red LED)
- Side or internal screw pressure plate back wire with 10 to 14 AWG solid or stranded copper wire and 2-back wire holes per terminal
- Ground screw has back wire clamp for easy installation
- 10 kA short circuit rating
- Mounting screws are shipped captive in the device and wall plate for easier installation
- Extra long strap
- Button colors match the device face
- Dual direction test and reset buttons
- 5 +/- 1 m trip threshold
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling Applications
- ECCN EAR99|cULus File No. E42190|UL 498|UL 943|Federal Specification WC596|CSA C22.2 No. 42|CSA No. 144|NEMA WD1/WD6
