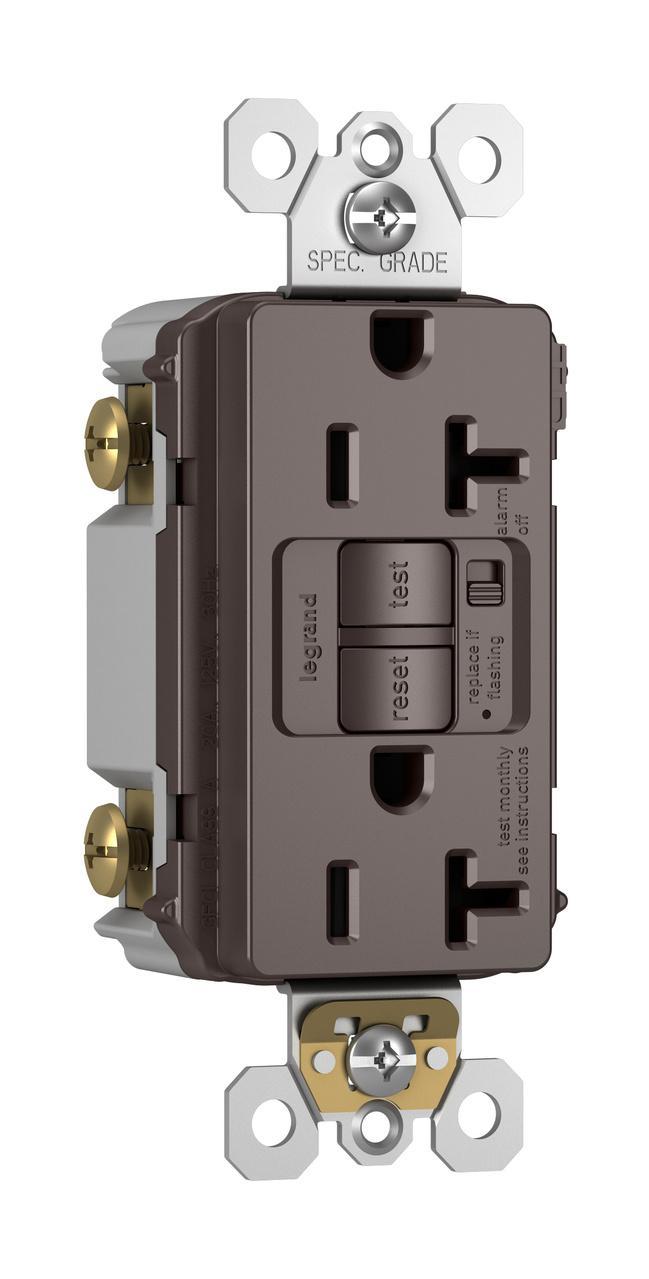

Pass & Seymour® Radiant® 2097TRA Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 20 A, 2 Poles, Brown
Sku #78500704858
MFG #2097TRA
Attributes
| Type: | Duplex Self-Test Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1-1/2 hp |
| Series: | 2097TR |
| Amperage Rating: | 20 A |
| Frequency Rating: | 60 Hz |
- One-piece, brass, triple-wipe power contacts for lasting retention
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
- Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly
- Mounting screws are shipped captive in the device and wall plate for easier installation
- Dual-direction test and reset button colors match the device face
- Thinner than competitors' GFCI Receptacles - leaves more room for wires in the box
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications
- CSA C22.2 No. 42/144|cULus Listed File No. E42190|ECCN: EAR99|Federal Specification W-C-596|FULs Listed|NEMA WD-1/WD-6 Rated|UL 498/943
