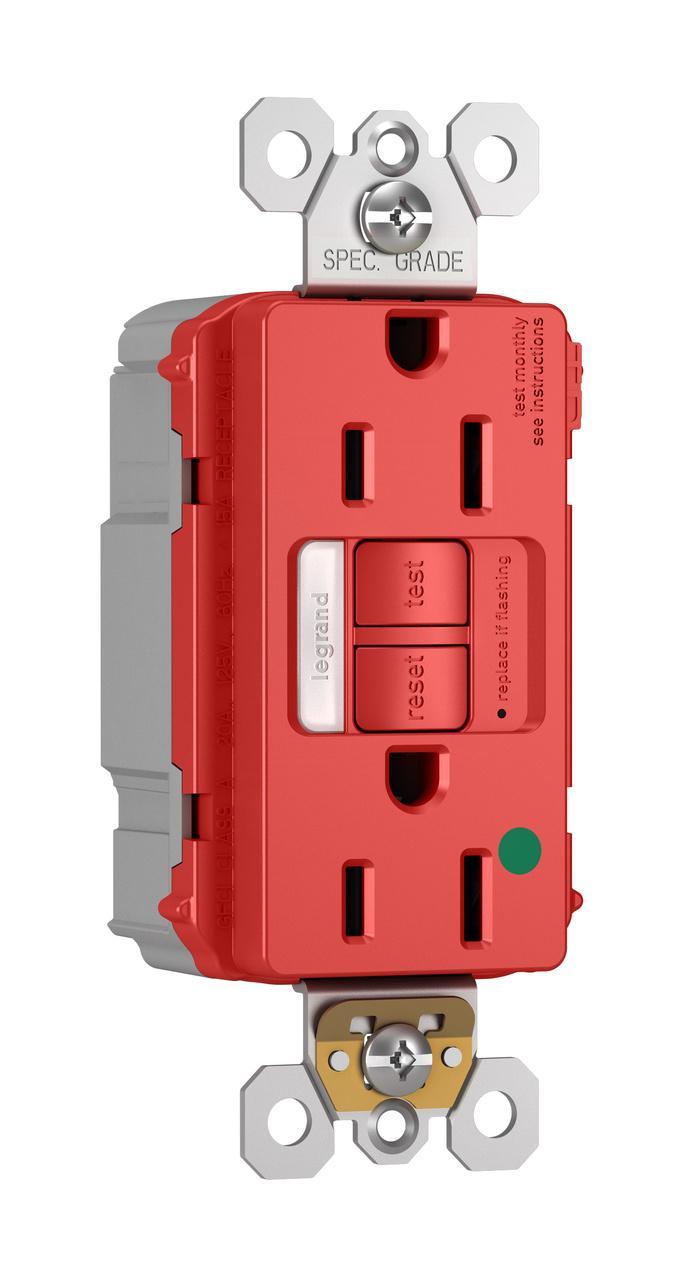

Pass & Seymour® PT1597-HGNTLTRRED Combination Self-Test Tamper Resistant GFCI Receptacle With Nightlight, 125 V AC, 15 A, 2 Poles, 3 Wires, Red
Sku #78500704841
MFG #PT1597HGNTLTRRED
Attributes
| Type: | Combination Self-Test Tamper Resistant |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- Protects children patented shutter system helps prevent improper insertion of foreign objects meeting National electrical Code® tamper resistant requirements
- Sealed night light with high impact resistant LEXAN® lens prevents tampering
- Night light uses cooler LED illumination
- Photocell turns night light on in dark, off in daylight
- Faster, more reliable installation
- No exposed terminals create a finger safe application before, during and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® connector
- GFCI works with existing 3-wire PlugTail® connectors creating a non feed-through application for facility owners
- Thinner than competitors' GFCI receptacles leaves more room for wires in the box
- Auto ground clip assures a positive ground to metal box
- Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3 kA/6 kV voltage surge test cycles
- Trip indicator light (red LED)
- 10 kA short circuit rating
- Mounting screws are shipped captive in the device and wall plate for easier installation
- Zinc plated steel mounting strap
- Button colors match the device face
- Dual direction test and reset buttons
- Tri-drive screws
- 5 +/- 1 m trip threshold
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- ECCN EAR99|cULus File No. E42190|cULus File No. E140596|UL 498|UL 943|Federal Specification WC596|CSA C22.2 No. 42|CSA No. 144|NEMA WD1/WD6|NAFTA Compliant
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling Applications
