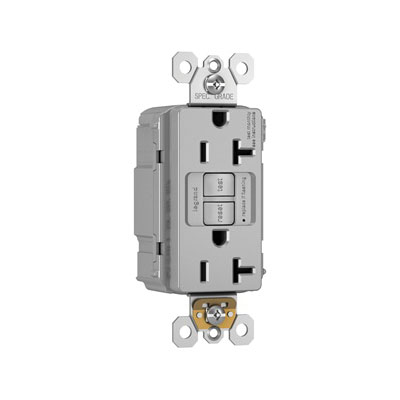

Pass & Seymour® PlugTail® PT2097TRGRY Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Sku #78500704821
MFG #PT2097TRGRY
Attributes
| Type: | Duplex Self-Test Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- Faster, more reliable installation
- Auto-ground clip assures a positive ground to metal box
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® connector
- GFCI works with existing 3-wire PlugTail® connectors creating a non feed-through application for facility owners
- 10 kA short circuit rating
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Button colors match the device face
- Trip-indicator light (red LED)
- Dual direction test and reset buttons
- Zinc-plated steel mounting strap
- High Impact-resistant thermoplastic construction
- Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3 kA/6 kV voltage surge test cycles
- 5 +/- 1 mA trip threshold, 0.025 sec trip time
- No exposed terminals create a finger safe application before, during and after installation
- Class A rated GFCI
- Tri-drive screws
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- UL 94-V-2 flammability rating
- Matching TP Wallplate
- Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling, Commercial and Residential Applications
- 1 Year
- CSA Certified|cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|NEMA WD-1/WD-6 Rated|UL 498/943
