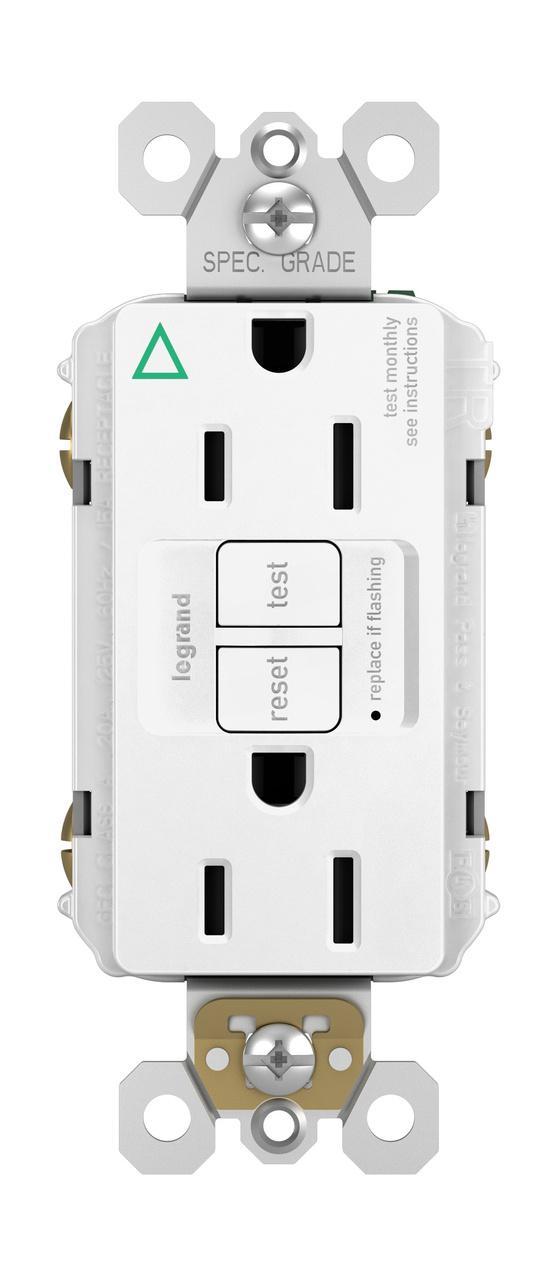

Pass & Seymour® Radiant® 1597IGTRW Duplex Grounding Isolated Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Sku #78500704819
MFG #1597IGTRW
Attributes
| Type: | Duplex Grounding Isolated Self-Test Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1/2 hp |
| Series: | 1597 |
| Amperage Rating: | 15 A |
| Frequency Rating: | 60 Hz |
- Class A rated GFCI
- Auto-ground clip assures a positive ground to metal box, meets 2015 UL requirements
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Nylon face and body, 0.03 in brass contacts, 0.05 in zinc plated steel mounting strap, steel 8 to 32 terminal screws, steel hex head grounding screw
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
- Ground screw has back wire clamp for easy installation, two back wire holes per terminal
- 10 kA short circuit rating, 102 to 132 VAC supply voltage range
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Extra long strap, button colors match the device face, dual direction test and reset buttons
- Withstands 1500 VAC minimum dielectric, 4 to 6 mA trip level
- 0.025 s nominal trip time
- 95% maximum humidity
- 5 +/- 1 mA trip threshold, 20 A feed-through capacity
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- Commercial and Residential Applications
- Matching TP26 Nylon Wallplate
- CSA C22.2 No. 42/144|cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|NEC Certified|UL 943|UL 94 V-2 Flammability Rated
