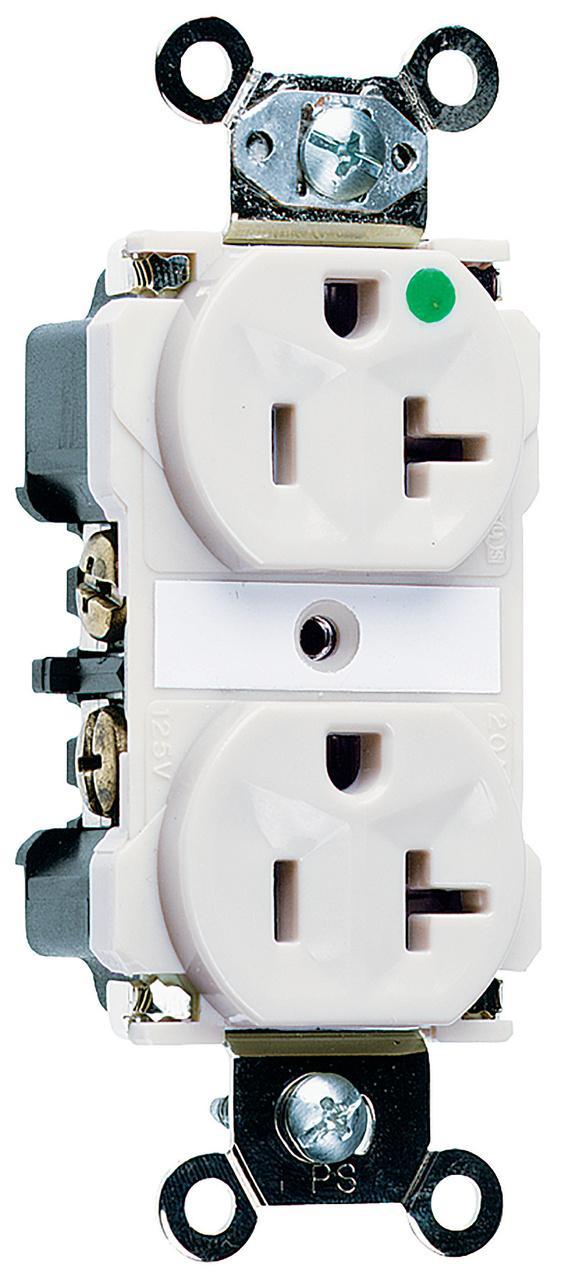

Pass & Seymour® 8300ILW Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500704599
MFG #8300ILW
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- File No E140596|UL 498|1449|Federal Specification WC596|File No LR16063|CSA-C22.2 No 42|ANSI/EEE C62.41|ANSI/IEEE C62.45|NEMA WD-1|WD-6|RoHS Compliant
- One-piece nickel-plated brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .040 in thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- External nickel-plated screw-presure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection
- https://www.youtube.com/watch?v=KpbwLH782EI&feature=youtu.be
- Healthcare, Education and Institutional
Pass & Seymour®Pass & Seymour® 8300ILW Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
SKU #78500704599
MFG #8300ILW
