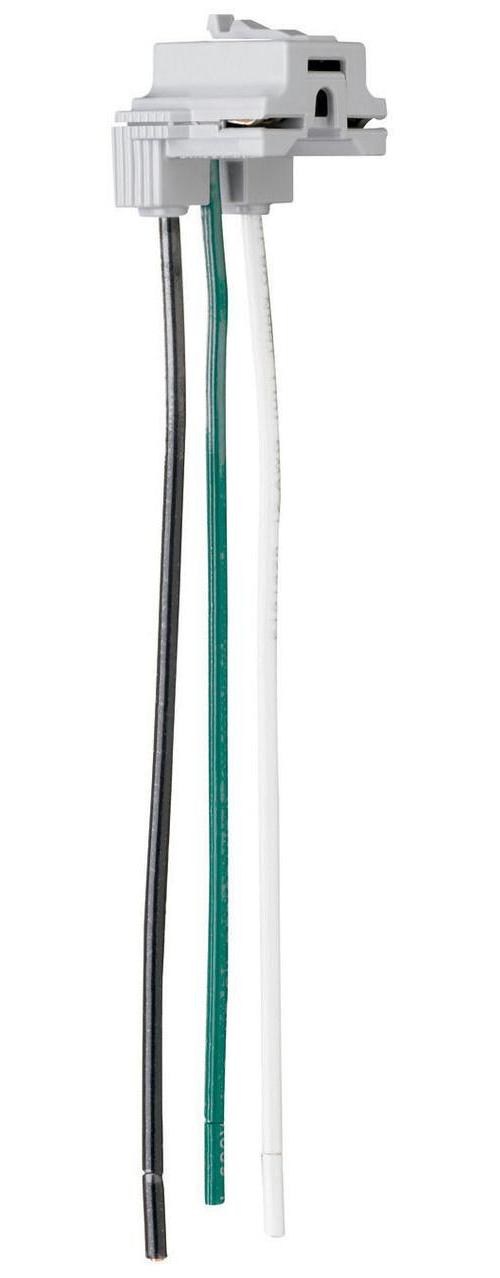

Pass & Seymour® PlugTail® PTRA6SOL Right Angle Receptacle Connector, 14 to 12 AWG Solid THHN Copper Wire, Polycarbonate
Sku #78500704455
MFG #PTRA6SOL
Attributes
| Type: | Right Angle |
| Wire Size: | 14 to 12 AWG |
| Specifications: | 15/20 A, 2-Pole, 3-Wire, 2000 V AC Minimum Dielectric Strength, Device/Wall Mount |
| Wire Type: | Solid THHN Copper |
| Voltage Rating: | 125 V AC |
| Temperature Rating: | -40 to 60 deg C |
- For PlugTail® receptacles and commercial applications
- Plated steel wrap strap design for maximum durability and corrosion resistance
- Available in any wire length up to 25 in, use Configurable Solutions to order
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- https://www.youtube.com/watch?v=5ztF9gTGV0M
- ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated|UL Listed
