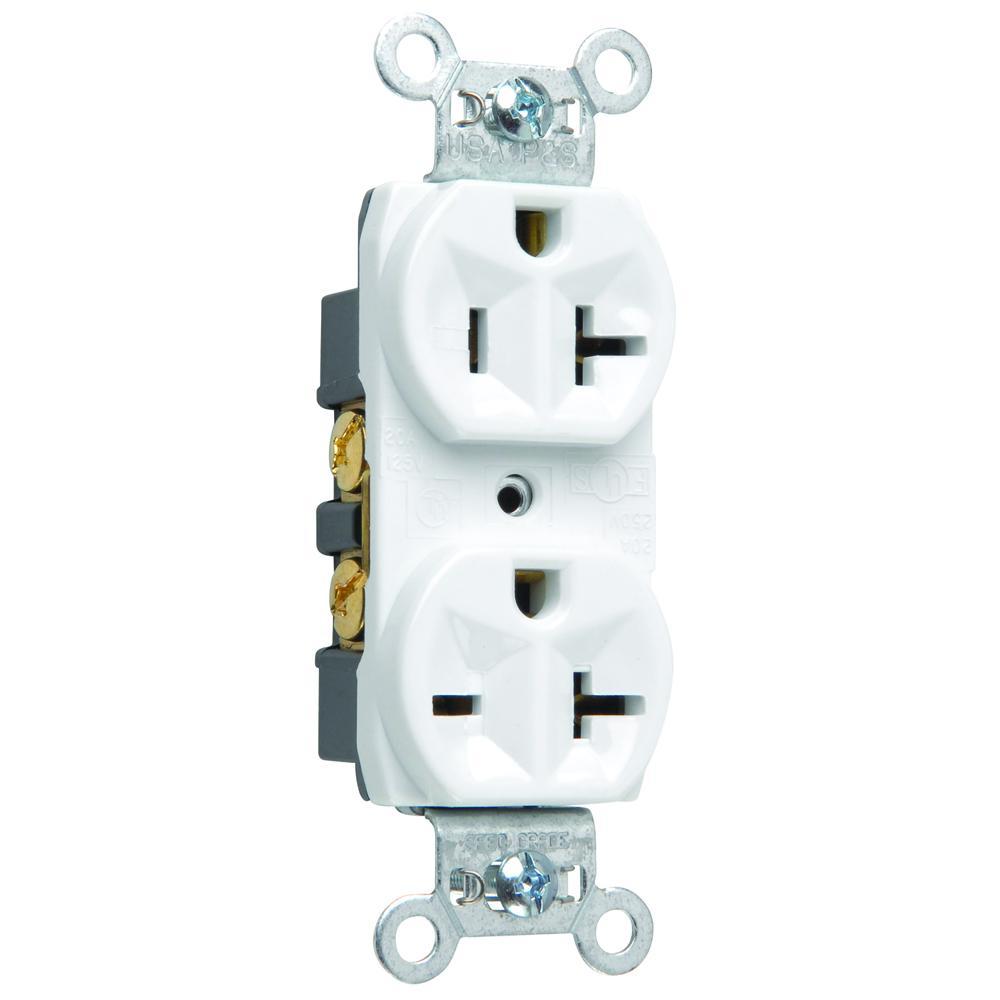

Pass & Seymour® 5890W Combination Duplex Straight Blade Receptacle, 125/250 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500704202
MFG #5890W
Attributes
| Type: | Combination Duplex |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125/250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R/6-20R |
- Corrosion-resistant plated and tabbed steel strap locked in to the face and back body to resist pulling away from face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- 8-hole internal screw pressure plate back wire terminals accept 14 to 10 AWG solid or stranded copper or copper clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- 0.032 in THK, brass triple wipe power contracts for lasting retention
- Withstands 2000 VAC minimum dielectric voltage
- Wattage of electrical power is expressed in amperage and voltage
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
- ARRA Compliant|Buy American Act Compliant|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Hard, Commercial Applications
