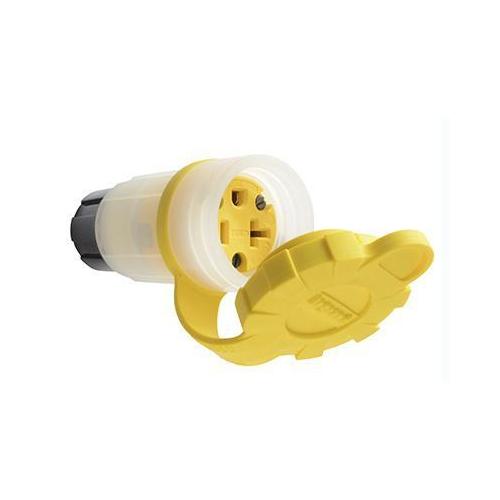

Pass & Seymour® Turnlok® STERIGUARD™ 15W47GCM Watertight Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White/Yellow
Sku #78500704073
MFG #15W47GCM
Attributes
| Type: | Watertight |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| Enclosure: | NEMA IP67 |
- Red LEDs indicate ground continuity loss or reversed polarity
- No LED indicates open hot, open neutral, or hot to ground cross
- Convenient continuous monitoring enhances personnel safety
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather
- Large ribs on body for a superior grip when mating
- Exclusive two-piece cord grip accepts a wide range of cord widths and provides more consistent pressure for superior conductor retention
- Recessed cord-grip screw reduces screwdriver slippage for improved safety
- Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire
- Internal dust shield keeps terminals free of contaminants
- Color-coded terminal screws are positioned on the same plane and backed-out for fast installation
- Nickel-plated blades and contacts for long lasting, superior corrosion resistance
- ARRA Compliant|Buy American Act Compliant|CSA Certified|cULus Listed|ECCN: EAR99|Federal Specification Specified|FULs Listed|UL Listed
- Commercial Applications
