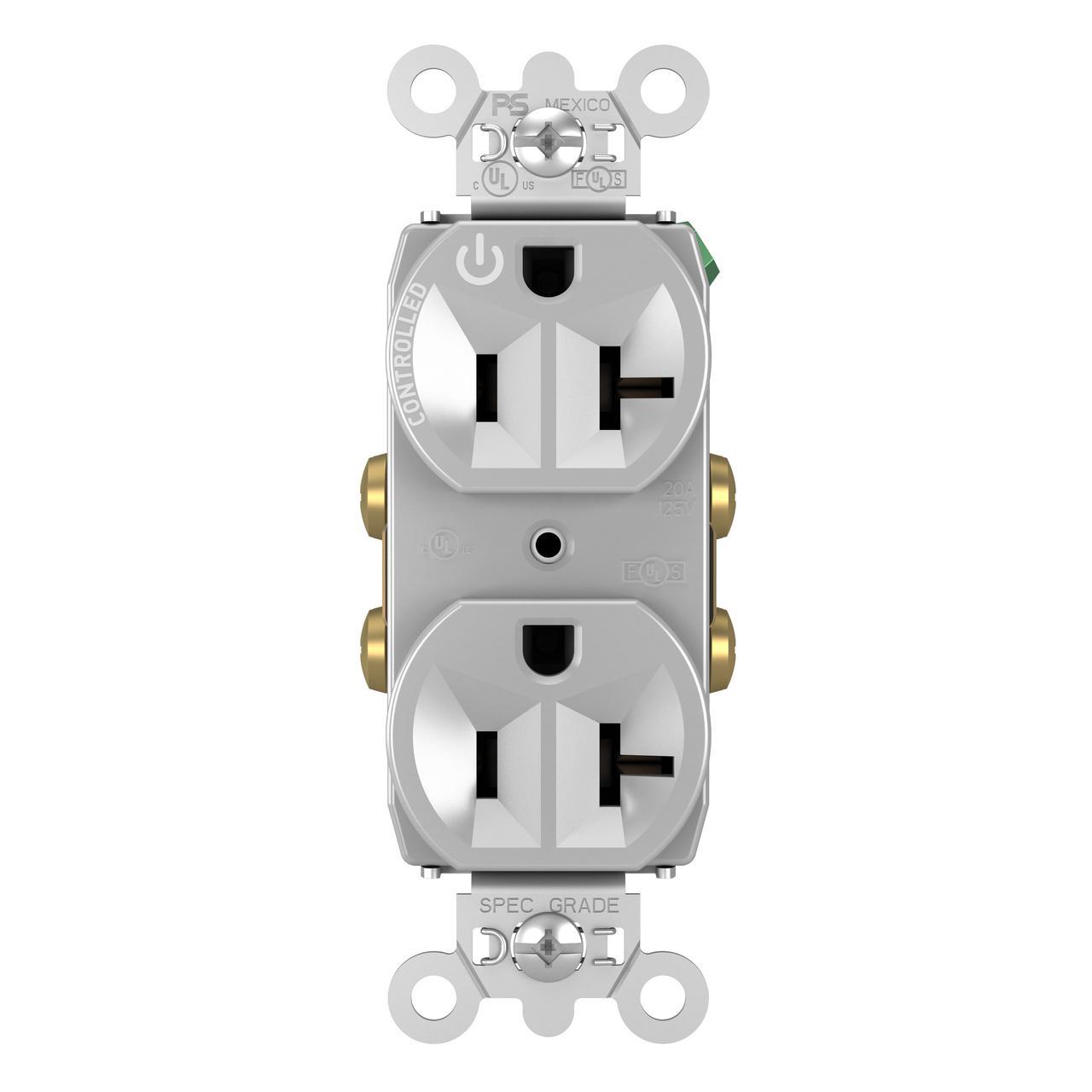

Pass & Seymour® 5362CHGRY Decorator Duplex Half Controlled Plug Load Straight Blade Receptacle, 125 V AC, 20 A, Gray
Sku #78500703829
MFG #5362CHGRY
Attributes
| Type: | Decorator Duplex Half Controlled Plug Load |
| Amperage Rating: | 20 A |
| Grade: | Commercial/Specification |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | NEMA 5-20R |
| Temperature Rating: | -40 to 60 deg C |
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- CSA C22.2 No. 42|File No. LR16063|Federal Specification Specified|UL 498|File No. E140596
