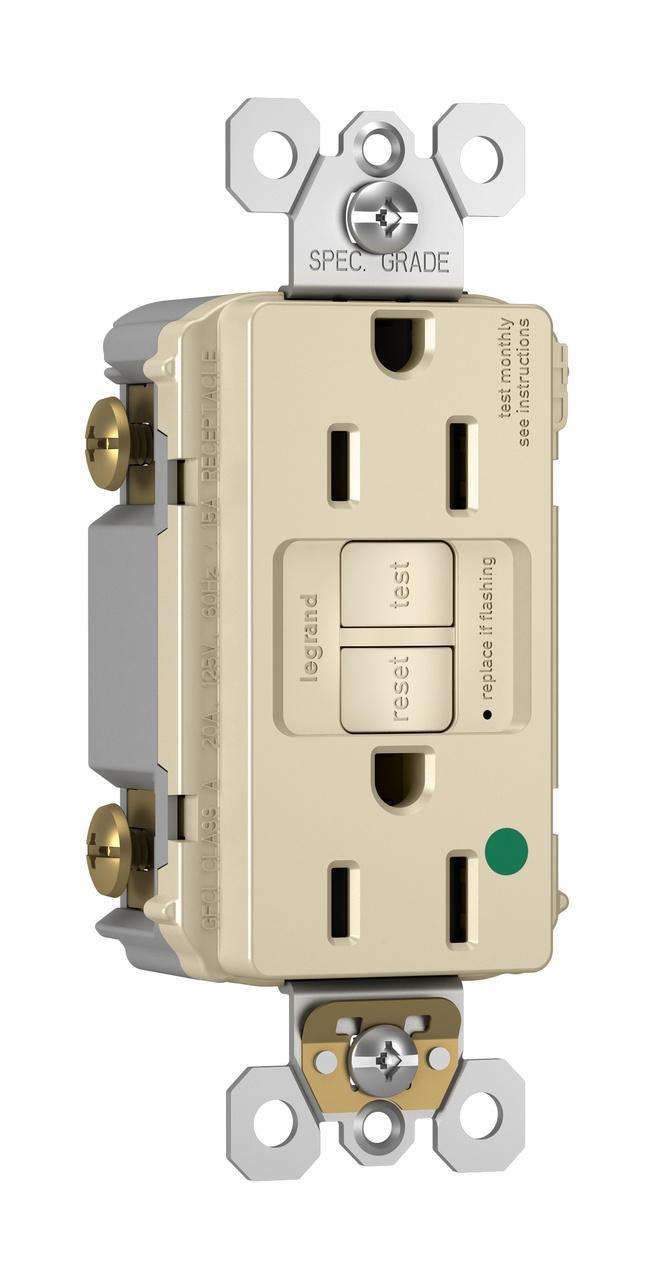

Pass & Seymour® Radiant® 1597HGTRLA Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Sku #78500703635
MFG #1597HGTRLA
Attributes
| Type: | Duplex Self-Test Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Series: | 1597HGTR |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
- Class A rated GFCI
- Auto-ground clip assures a positive ground to metal box, meets 2015 UL requirements
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Conducts an automatic test every three sec, ensuring it's always ready to protect, if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3-gang kA/6 kV voltage surge test cycles
- Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
- Ground screw has back wire clamp for easy installation
- 10 kA short circuit current rating
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Extra long strap, button colors match the device face
- Trip-indicator light (red LED), two backwire holes per terminal
- It also has our proven SafeLock® protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
- 95% maximum humidity
- 5 +/- 1 mA trip threshold, 20 A feed-through capacity
- Nickel plated steel 8 to 32 terminal screw
- Dual direction test and reset buttons
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- FULs Listed|NEC Certified|UL 498|UL 94 V-2 Flammability Rated|UL Listed
- Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling, Commercial and Residential Applications
