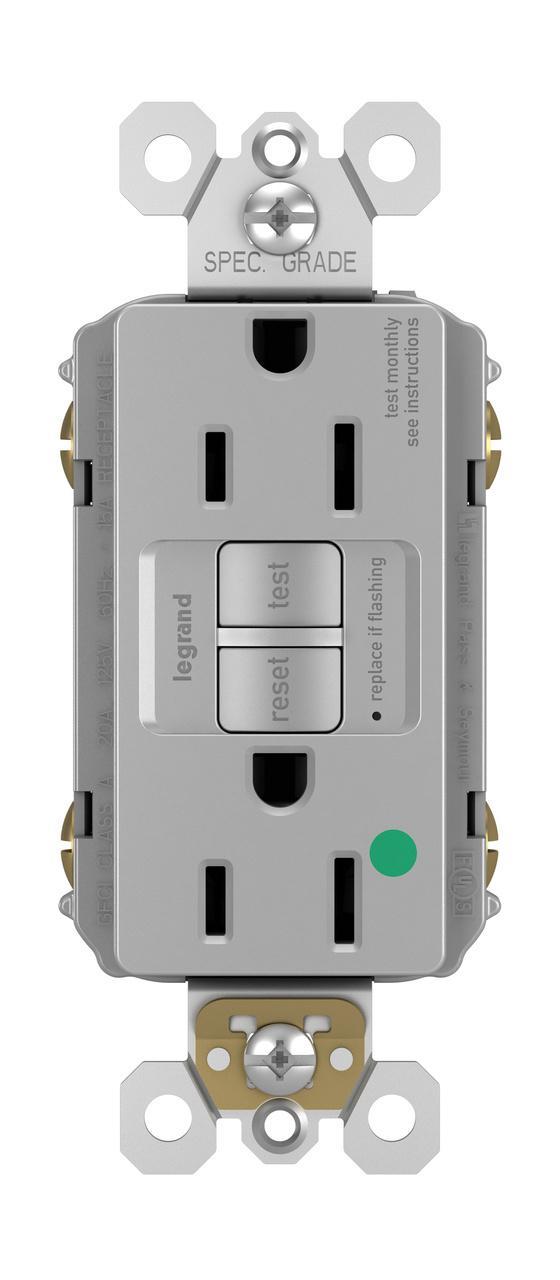

Pass & Seymour® Radiant® 1597HGGRY Duplex Self-Test Straight GFCI Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Gray
Sku #78500703620
MFG #1597HGGRY
Attributes
| Type: | Duplex Self-Test Straight |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Series: | 1597HG |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Auto-ground clip assures a positive ground to metal box
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- 10 kA short circuit rating
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Button colors match the device face
- Trip-indicator light (red LED)
- Dual direction test and reset buttons
- Extra long strap
- Ground screw has back wire clamp for easy installation
- Side or internal screw pressure plate back wire with 10 to 14 AWG solid or stranded copper wire and 2-back wire holes per terminal
- 5 +/- 1 m trip threshold
- https://www.youtube.com/watch?v=wWKZUjGeZcA
- CSA C22.2 No. 42/144|cULus Listed File No. E42190|ECCN: EAR99|Federal Specification W-C-596|FULs Listed|NEMA WD-1/WD-6 Rated|UL 498/943
