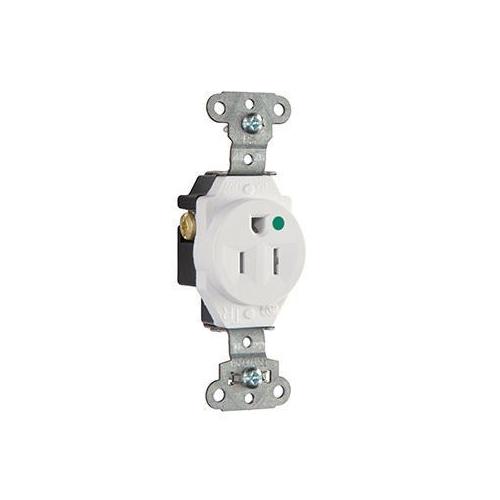

Pass & Seymour® TR8201W Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Sku #78500703091
MFG #TR8201W
Attributes
| Type: | Single Tamper Resistant |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Tri-drive steel terminal screws
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for more wiring flexibility
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Heavy-duty, zinc-plated steel strap for added strength
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Auto-ground eliminates the necessity to terminate grounding conductor to device
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Healthcare, Education and Institutional Applications
- UL 498 File No. E140596|CSA C22.2 No. 42/LR16063|Federal Specification WC596
