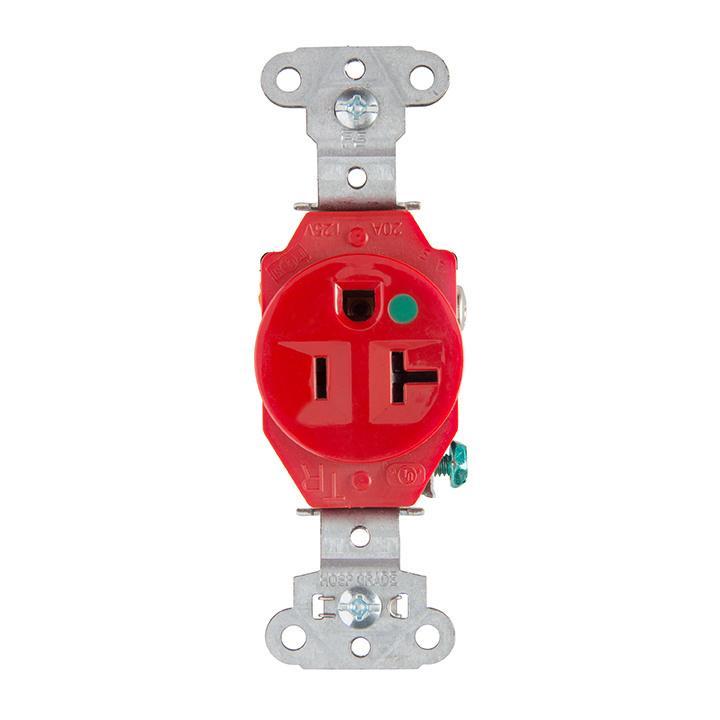

Pass & Seymour® TR8301RED Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, Red
Sku #78500703087
MFG #TR8301RED
Attributes
| Type: | Single Tamper Resistant |
| Amperage Rating: | 20 A |
| Grade: | Hospital |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | 5-20R |
| Temperature Rating: | -40 to 60 deg C |
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Tri-drive steel terminal screws
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for more wiring flexibility
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Heavy-duty, zinc-plated steel strap for added strength
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Auto-ground eliminates the necessity to terminate grounding conductor to device
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- CSA File No. LR16063|C22.2 No. 42|cUL Listed|Federal Specification WC596|UL 498
