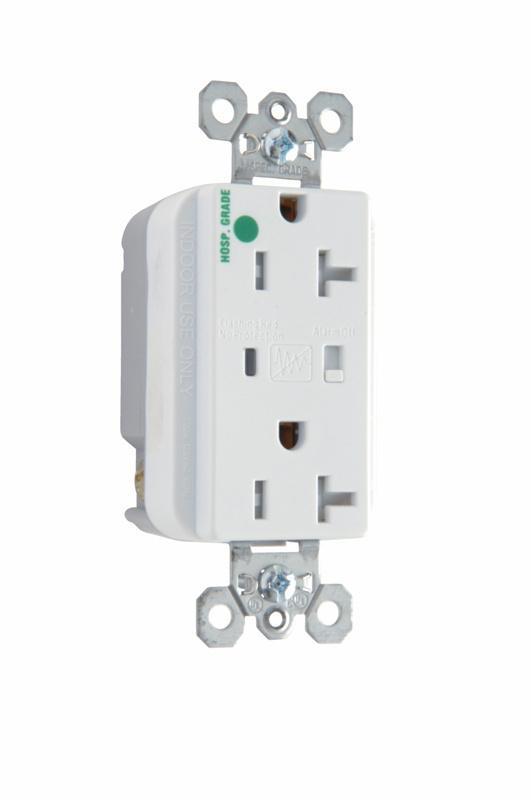

Pass & Seymour® TR8300WSP Duplex Extra Heavy Duty Surge Protective Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500701999
MFG #TR8300WSP
Attributes
| Type: | Duplex Extra Heavy Duty Surge Protective Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- http://www.youtube.com/watch?v=CjT4MIzB4sw
- Residential/Commercial Applications
- ANSI/IEEE C62.41|ANSI/IEEE C62.45|CSA C22.2 No. 42 File No. LR16063|Federal Specification W-C-596|UL 498|UL 1449 File No. E140596
