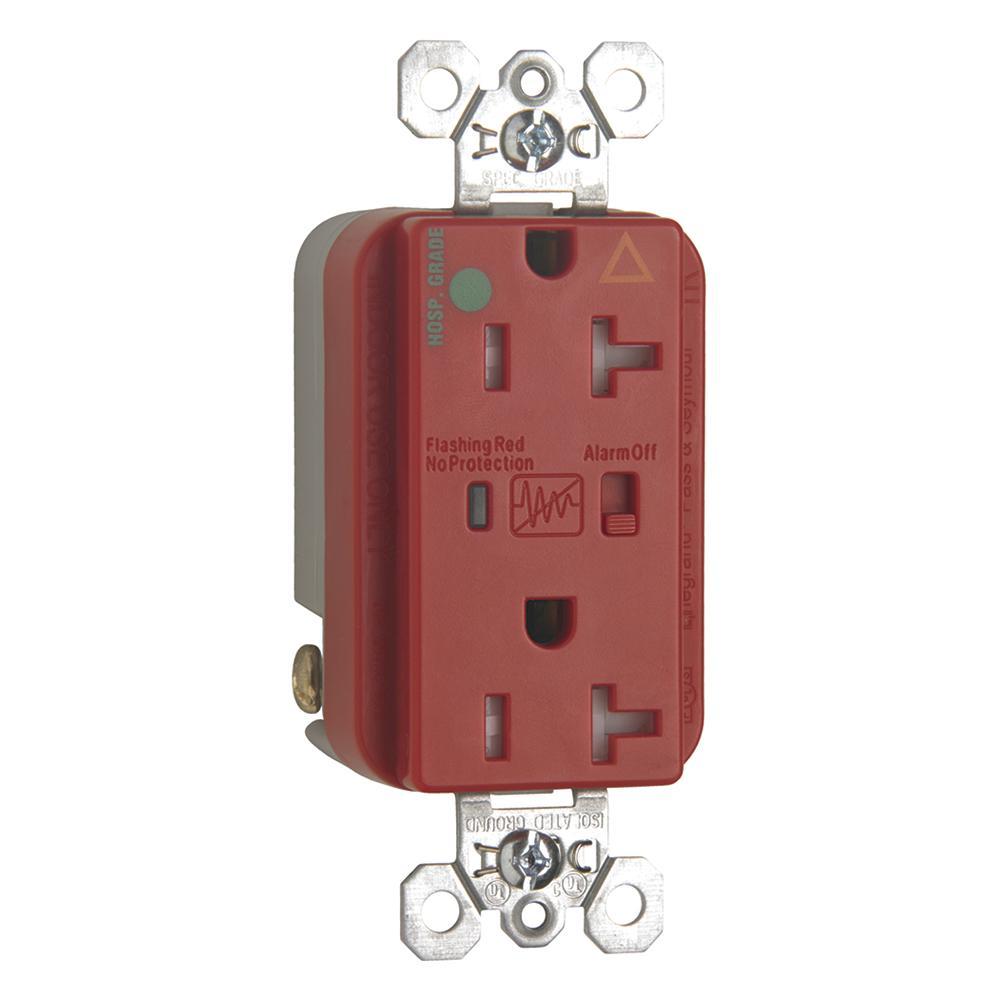

Pass & Seymour® TRIG8300REDSP Duplex Hospital/Specification Grade Isolated Ground Tamper-Resistant Surge Protective Receptacle, 125 V AC, 20 A, 60 Hz, 1 Phase
Sku #78500701966
MFG #TRIG8300REDSP
Attributes
| Type: | Duplex Hospital/Specification Grade Isolated Ground Tamper-Resistant |
| Amperage Rating: | 20 A |
| Phase: | 1 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Type of Indicators: | Audible Alarm |
- Commercial and Residential Applications
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- http://www.youtube.com/watch?v=CjT4MIzB4sw
- ECCN EAR99|UL Listed
