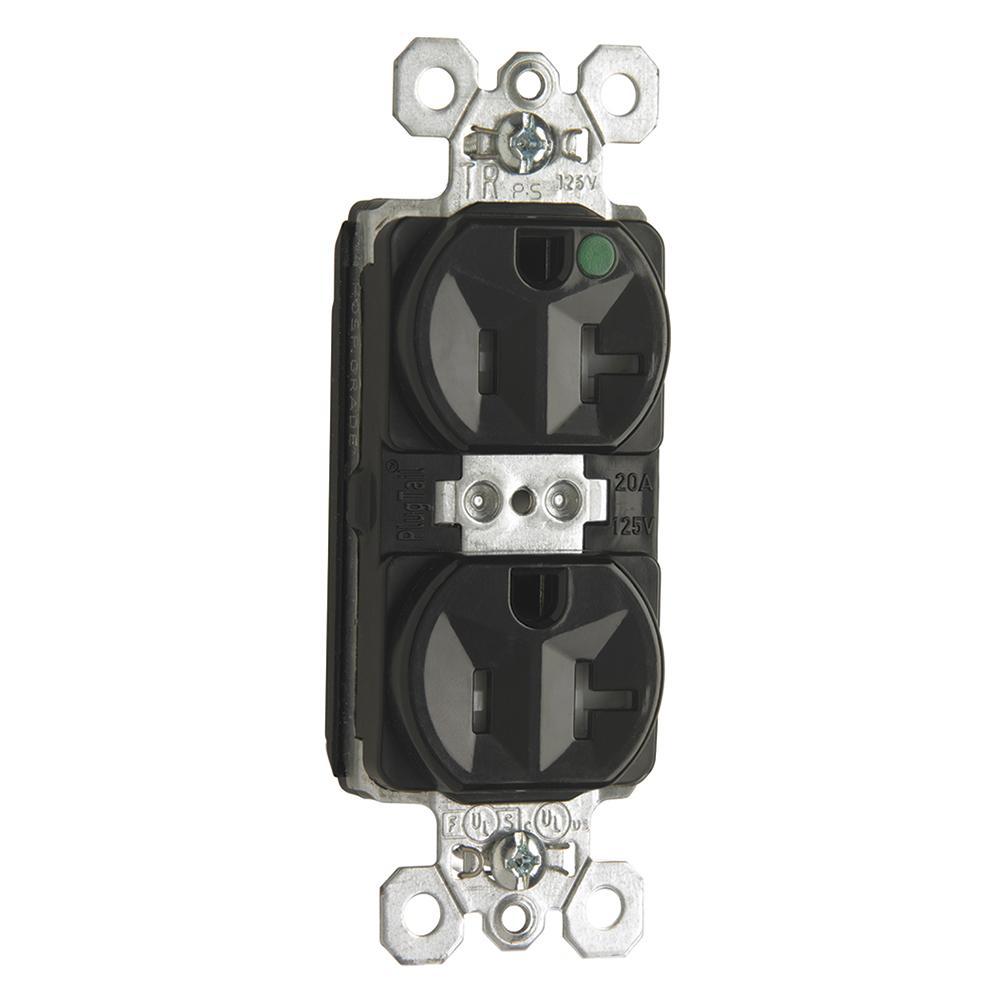

Pass & Seymour® PTTR8300BK 3-Phase Duplex Tamper-Resistant Wall Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black
Sku #78500701324
MFG #PTTR8300BK
Attributes
| Type: | 3-Phase Duplex Tamper-Resistant Wall Mount |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- CSA C22.2 No. 42|cULus Listed|cUL File No. E140596|Federal Specification|UL 498
- Commercial Applications
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Brushed finish
- Plated steel wrap strap design for maximum durability and corrosion resistance
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- https://www.youtube.com/watch?v=CjT4MIzB4sw
