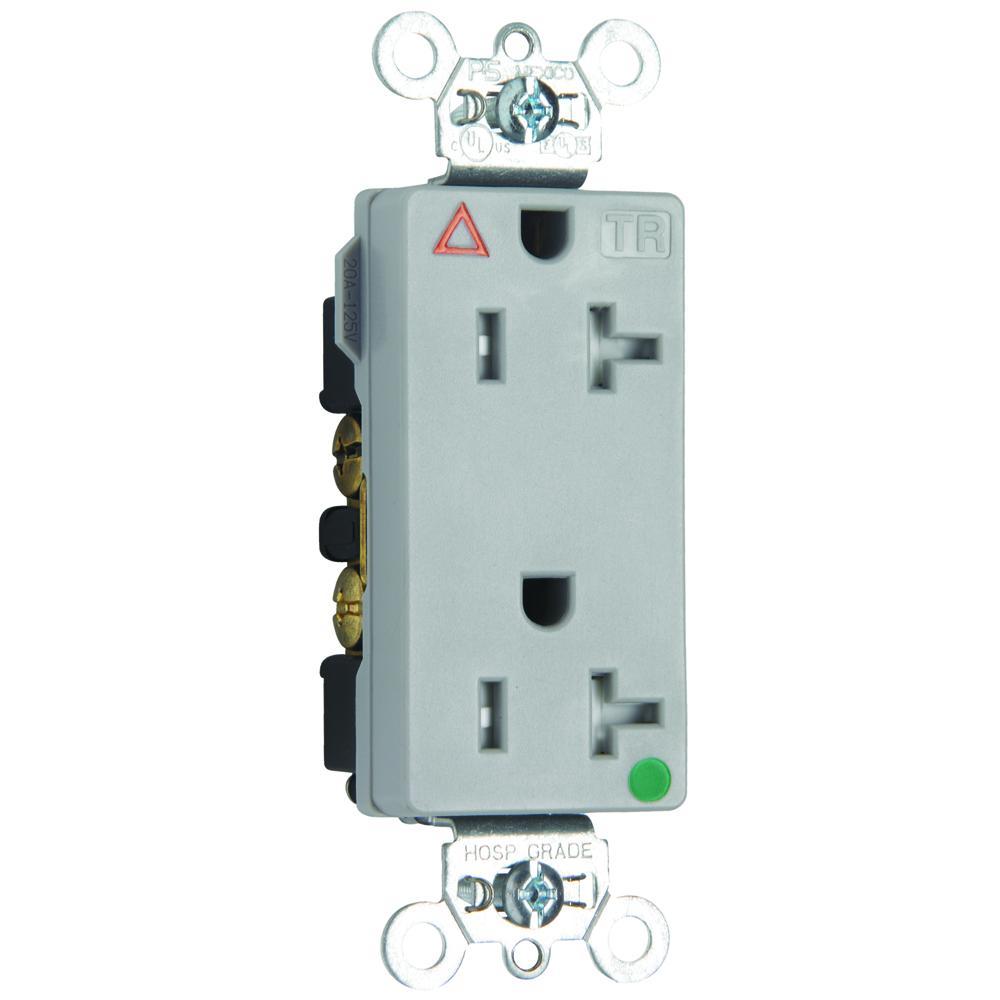

Pass & Seymour® TRIG26362HGGRY Decorator Duplex Heavy Duty Isolated Ground Tamper-Resistant Wall Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Sku #78500701239
MFG #TRIG26362HGGRY
Attributes
| Type: | Decorator Duplex Heavy Duty Isolated Ground Tamper-Resistant Wall Mount |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Commercial Applications
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Side and internal screw-pressure-plate back wire capability with 14 - 10 AWG copper or copper-clad, solid or stranded wire
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Federal Specification Specified|UL 498|UL Listed
