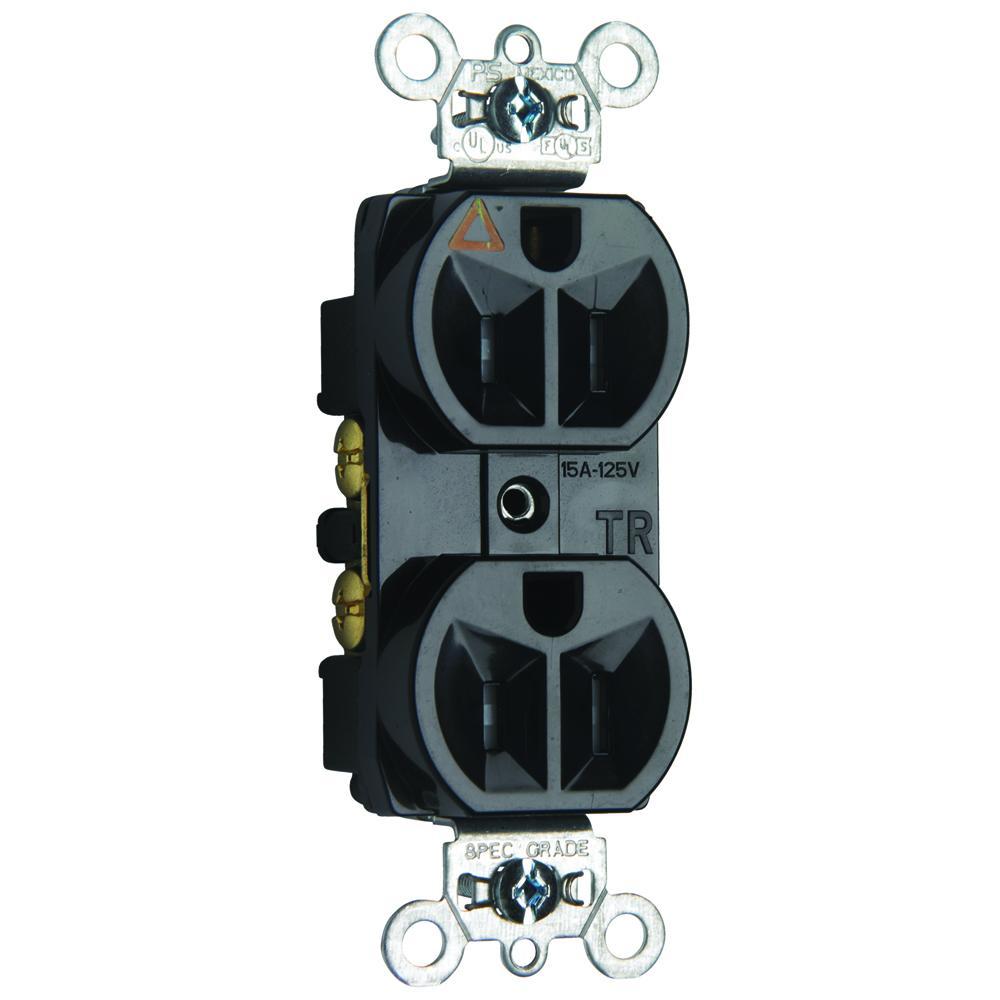

Pass & Seymour® TRIG5262BK Duplex Heavy Duty Isolated Ground Tamper-Resistant Wall Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
Sku #78500701151
MFG #TRIG5262BK
Attributes
| Type: | Duplex Heavy Duty Isolated Ground Tamper-Resistant Wall Mount |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- https://www.youtube.com/watch?v=CjT4MIzB4sw
- UL 498
- Commercial Applications
Pass & Seymour®Pass & Seymour® TRIG5262BK Duplex Heavy Duty Isolated Ground Tamper-Resistant Wall Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
SKU #78500701151
MFG #TRIG5262BK
