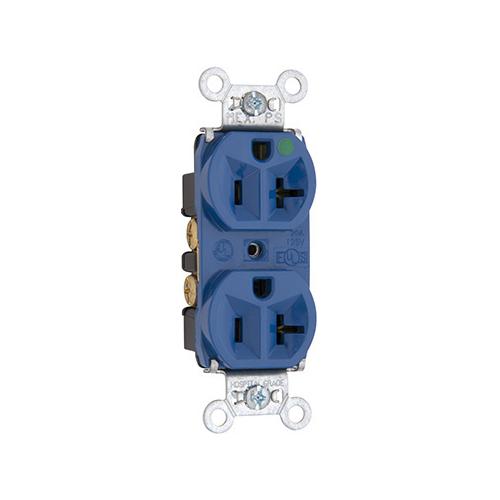

Pass & Seymour® 8300HBL Duplex Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Blue
Sku #78500700830
MFG #8300HBL
Attributes
| Type: | Duplex |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V |
| Number of Poles: | 2 |
| NEMA Rating: | 5-20R |
- Impact-resistant nylon face
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept 14 - 10 AWG copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- cULus Listed
