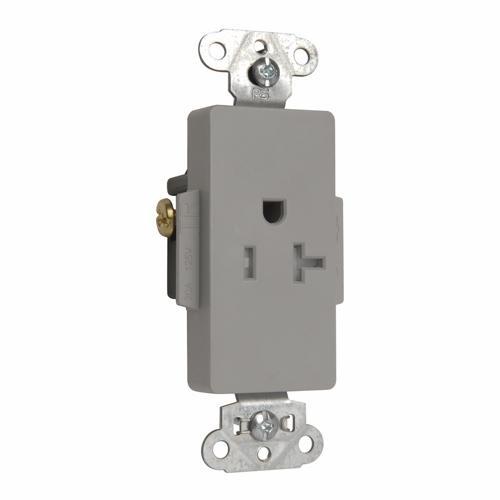

Pass & Seymour® TR26361GRY Decorator Heavy Duty Single Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Sku #78500700490
MFG #TR26361GRY
Attributes
| Type: | Decorator Heavy Duty Single Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- http://www.youtube.com/watch?v=CjT4MIzB4sw
- Healthcare, Institutional, Hospitality, Lodging and Multiple Dwelling and Commercial Applications
- CSA C22.2 No. 42|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated
