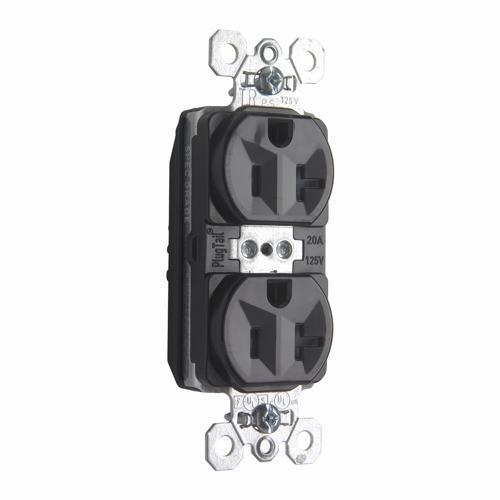

Pass & Seymour® PlugTail® PTTR5362-BK 3-Phase Duplex Extra Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black
Sku #78500700135
MFG #PTTR5362BK
Attributes
| Type: | 3-Phase Duplex Extra Heavy Duty Tamper-Resistant |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Smooth wall plate
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- http://www.youtube.com/watch?v=CjT4MIzB4sw
- UL 498 File No. E140596|cULus Listed
- Healthcare, Education and Institutional Applications
