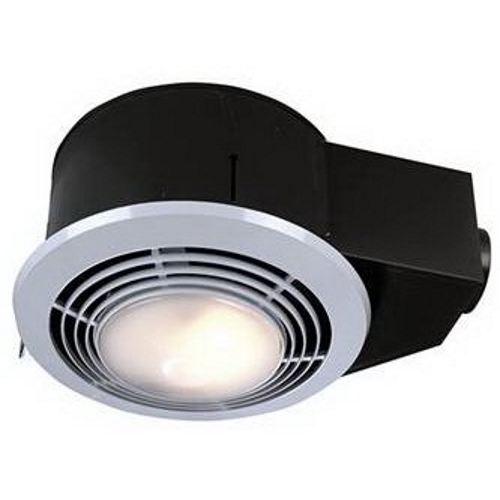

NuTone® Heat-A-Ventlite® QT9093WH Heater/Fan, 110 cfm, 4 in Dia Duct, 100 W, 120 V AC, 1500 W
Sku #78489132212
MFG #QT9093WH
Attributes
| Flow Rate: | 110 cfm |
| Voltage Rating: | 120 V AC |
| Heater Wattage: | 1500 W |
| Duct Diameter: | 4 in |
| Frequency Rating: | 60 Hz |
| Housing Dimensions: | 13-1/4 in L x 18-1/8 in W x 7-1/2 in H |
- 1500 W heating element and 110 cfm ventilation fan provides optimum performance in bathrooms upto 100 sq-ft, so you can have a touch of heat just when you need it
- Bright 100 W incandescent lighting provides clean, even light for pleasant surroundings and enough light to focus on the details
- 7 W nightlight provides a soft glow to light your bath during those nighttime visits
- White enamel grille is a suitable match for any decor no matter how many times you change the paint color
- 3 Sones sound level
- 4-function wall switch included so you have the right switch to control all functions out of the box
- Horizontal duct direction
- White enamel grille finish
- Built-in junction box with receptacles for simple plug-in installation of heater, fan motor and lights
- White polymeric grille finish
- Nickel chromium coiled resistance wire heating element
- Automatic resetting thermal limit protector
- Thermally protected, shaded pole, sleeve bearing motor
- Separate ON/OFF wall switch for heat and vent functions
- Snap-on polypropylene duct adapter and damper designed
- 70 cfm at 0.1 in airflow rate
- Cold rolled steel, heater/fan/light/nightlight combo
- Installation Instructions
- 1 Year
- HVI Certified
