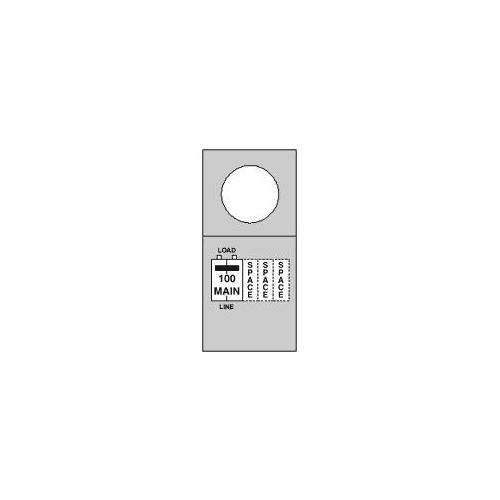

Sku #78456762088
MFG #R101CP6HP
Attributes
| Type: | Metered Ringless |
| Amperage Rating: | 100 A |
| Circuit Breaker Type: | CB2100 |
| Voltage Rating: | 120/240 V AC |
| Phase: | 1 |
| Wire Size: | 6 AWG to 350 kcmil, 12 to 2 AWG |
- 1-head
- 3 additional breaker space per head
- Series wiring configuration
- LC55N1 load center
- Provision for field installation circuit protection
- Load centers are provided with copper bus, 22 kAIC bus bracing and 100% neutral terminations, feed-through lugs provided on load centers with main breaker
- 320 a continuous duty meter socket
- All terminals accept copper or aluminum wire for added installation flexibility
- Utility meter socket compartment has barrier from main circuit breakers for utility power protection
- Factory installed flange for easy semi-flush or surface installation
- Durable polyester powder coat finish resists chipping and fading
- Branch circuit accept combinations up to 200 a
- Line side 1/2 in stud termination provided, however, crimp-on/connector lug not provided by Midwest
- 10000 AIC interrupt rating
- UL Listed
- For single family residences and mobile home applications
