Sku #78456720618
MFG #GS3161B12UL
Attributes
| Type: | 1-Phase Heavy Duty Unmetered |
| Amperage Rating: | 100 A |
| Enclosure Type: | NEMA 3R |
| Voltage Rating: | 120/240/600 V AC |
| Number of Poles: | 3 |
| Mounting Type: | Surface |
- Heavy duty manual transfer switch provides reliable, trouble-free transfer of power from the normal utility supplied source, to a stand-by generator

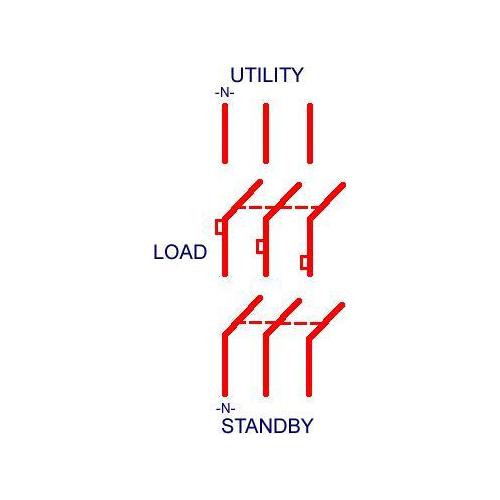

- The double throw mechanism helps prevent dangerous back-feeding of generator power into the utility system
- Designed to be fully operational and switchable at full rated capacity quick-make, quick-break switch mechanism
- All in one construction for factory assured terminations
- Bus bars used to interconnect main and standby switches knife blade switch contacts provide long life
- Heavy zinc coated steel with highest quality powder coat finish resists corrosion and fading welded flange, NEMA 3R construction, for lasting service in outdoor installations
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- Quality user tested components for long life
- Suitable for use as service equipment, when installed in accordance with the NEC Interlock allows door opening only when switch is in the OFF position
- Padlock provision in all three ON-OFF-ON transfer positions door has padlock provision
- Door has padlock provision
- All terminals accept copper or aluminum wire for added installation flexibility
- 3 in pole can be used for switched neutral applications - neutral kit not required
- Quick-make, quick-break switch mechanism on most models
- Zinc coated steel
- Note: unit is rated 600 VAC if field installed with NEU102 - ordered separately
- Poultry Farms, Dairy Farms, Ventilation in Animal Confinement Buildings, Crop Drying and Anywhere an Extended Loss of Normal Power Service Would Result in Severe Loss, Damage or Inconvenience
- 1-1/4 in Hub
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL, UL Listed
- 1 Year
