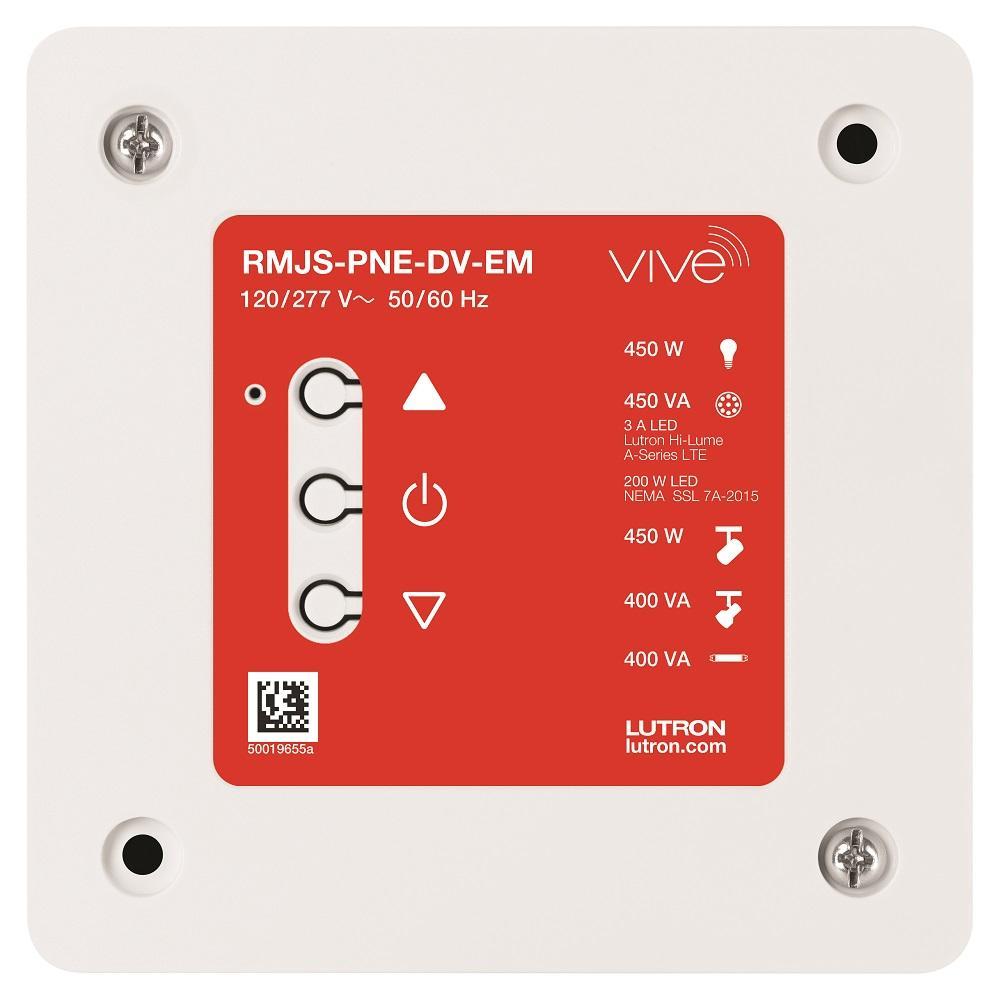

Lutron® RMJS-PNE-DV-EM RMJS-PNE Phase Select Dimming Module, 120/277 V
Sku #78427628679
MFG #RMJS-PNE-DV-EM
Attributes
| Series: | RMJS-PNE |
| Temperature Rating: | 0 to 40 deg C |
| Dimensions: | 4.53 in H x 4.53 in W x 0.46 in D |
| Voltage Rating: | 120/277 V |
| Humidity: | 0 to 90% Non-Condensing |
- Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy / vacancy sensors and 1 Radio Powr Savr daylight sensor
- Utilizes Lutron Clear Connect - Type A RF
- Buttons on the PowPak module provide override control
- Power failure memory automatically returns the outputs to the levels they were set to prior to a power outage
- LEDs on the PowPak module provide diagnostic information
- RTISS-ICM technology is able to withstand high inrush LEDs, bulb blowouts and direct shorts
- Integral protection for common temporary overcurrent and over-voltage conditions
- Configurable high- and low-end trim
- RTISS technology compensates for incoming line variations such as frequency shifts (up to +/- 2% change in frequency / second), harmonics and line noise
- Operates in reversephase mode by default, Can be changed to forwardphase mode using button presses or the Vive app
- cULus 508 Listed. Complies with the limits for a Class B device, pursuant to IC and FCC rules. Complies with requirements for use in other spaces used for environmental air (plenums) per NEC ® 2014 300.22(C)(3). Listed in accordance to CAN /ULC S142 standard method of fire test for heat and visible smoke release for discrete products. NEMA SSL 7A-2015. UL 924. NOM
- For Lighting Control
