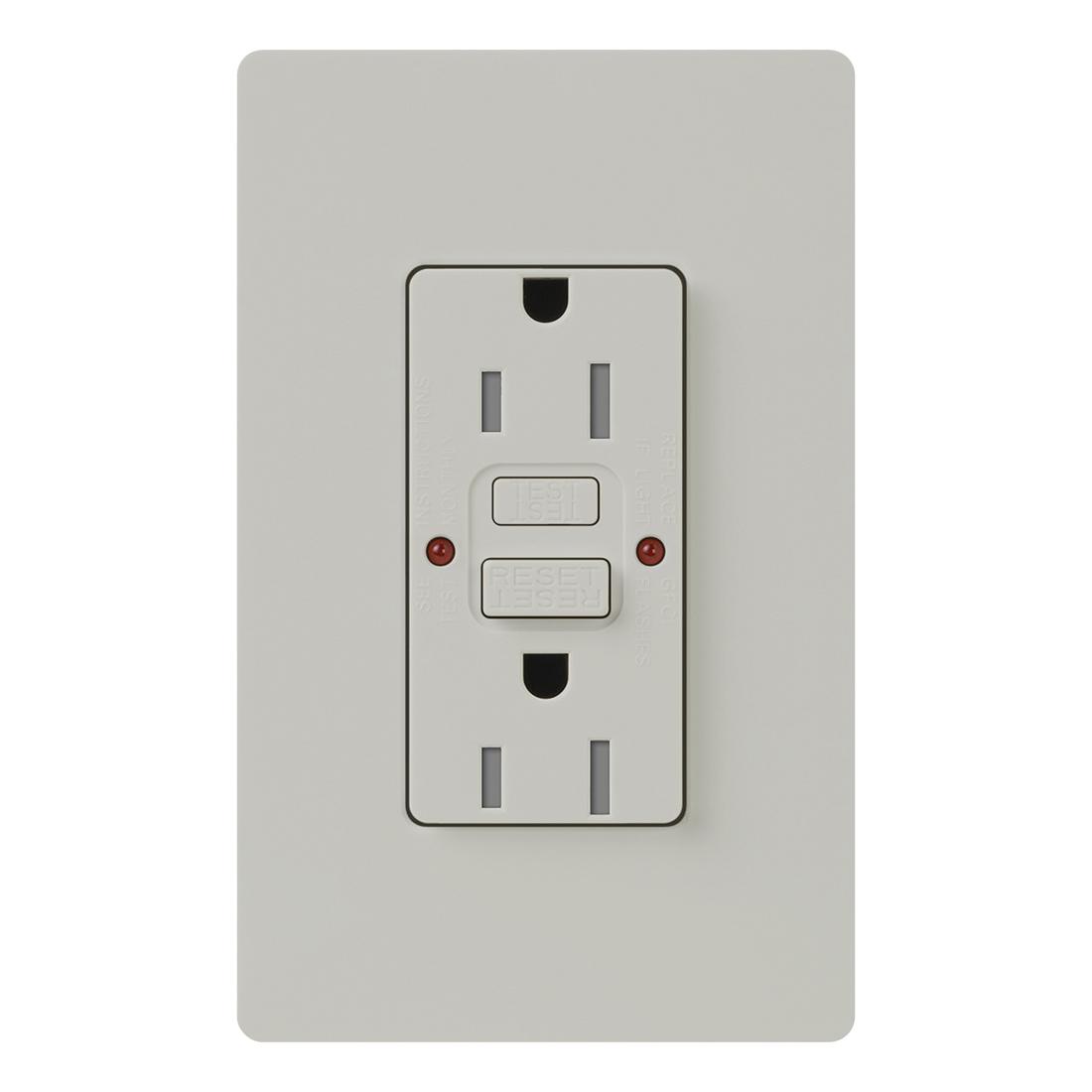

Lutron® SCR-15-GFST-PD Claro® Designer Style Self-Testing Tamper-Resistant GFCI Receptacle, 125 VAC, 15 A, Palladium
Sku #78427615902
MFG #SCR-15-GFST-PD
Attributes
| Type: | Designer Style Self-Testing Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Series: | Claro® |
| Amperage Rating: | 15 A |
| Temperature Rating: | -30 to 150 deg F |
- UL 943/UL 498/UL 943 UL File No. E-41978 Listed|CSA File No. LR-24886, Complies to NEC|UL 498 File No. E41978|UL 943 Section 6.20 Class A|CEC Certified|OSHA Compliant|CSA File No. LR24886|NOM Certified|NEC 406.12|NEC 517-18
- Reverse wire safety feature - if wired incorrectly there will be no power to the face or to downstream receptacles for added safety
- Manual test, this design incorporates a full system test function, the GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, this in turn causes the mechanical system to react based on the action of the solenoid, the entire mechanical and electronic GFCI system is reviewed for functionality
- Receptacle face compatible with NEMA designer and Nova T® designer opening wallplates
- Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing continuous self-testing that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
- Traditional testing mode by manually operating the "test and reset" buttons utilizing a supervisory circuit as specified in UL 943 section 5.15
- Clear visual indication of GFCI status - LED indicating lights, green LED (power to the device), red LED (trip condition/ground fault condition), flashing red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Auto-sensing mode for immediate interruption for a ground fault condition for class A protection (4 to 6 mA)
- Internal back wiring clamp and guide pocket - quick and dependable termination
- Three provisions for providing protection, (1) continuous electronic sensing, testing and evaluation utilizing diagnostic software located on the printed circuit board
